Bidirectional Fast Charging Discharging Power Supply

DC Module Power Supply

This DC module power supply is suitable for multiple batteries, with wide voltage design and strong compatibility. It has bidirectional fast charging switching, staggered parallel anti-ripple technology, efficiency of 98.6%, and longer life. Equipped with intelligent DSP digital control, it responds quickly and accurately. Modular expansion is flexible and suitable for all scenarios such as microgrids, communication base stations, factories, photovoltaic power stations, and photovoltaic storage and charging.

Item No :
GM-LDC60B
Payment :
TT/LC
Product Origin :
China
Custom Made :
Yes
Shipping Port :
20 days
Warranty :
5 years

Product Details

Features

Good Compatibility

Wide Input Voltage

Multiple Safety Protections

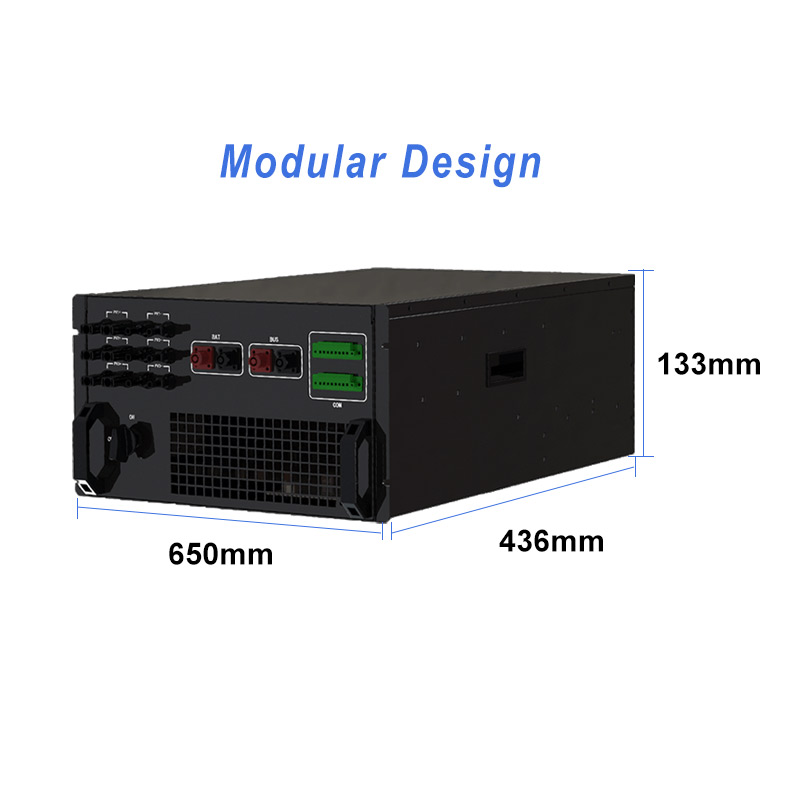

Modular Design

This DC DC Module supports multiple battery types, equipped with comprehensive protection functions and strong adaptability.
The DC wide input voltage range design ensures flexibility and stability in use.
Bidirectional energy flow enables fast charge and discharge switching.
Interleaved parallel technology reduces capacitor ripple and extends service life.
The conversion efficiency is as high as 98.6%, energy-saving and efficient.
Intelligent DSP digital control improves data processing accuracy and speed, and modular design facilitates expansion of applications.

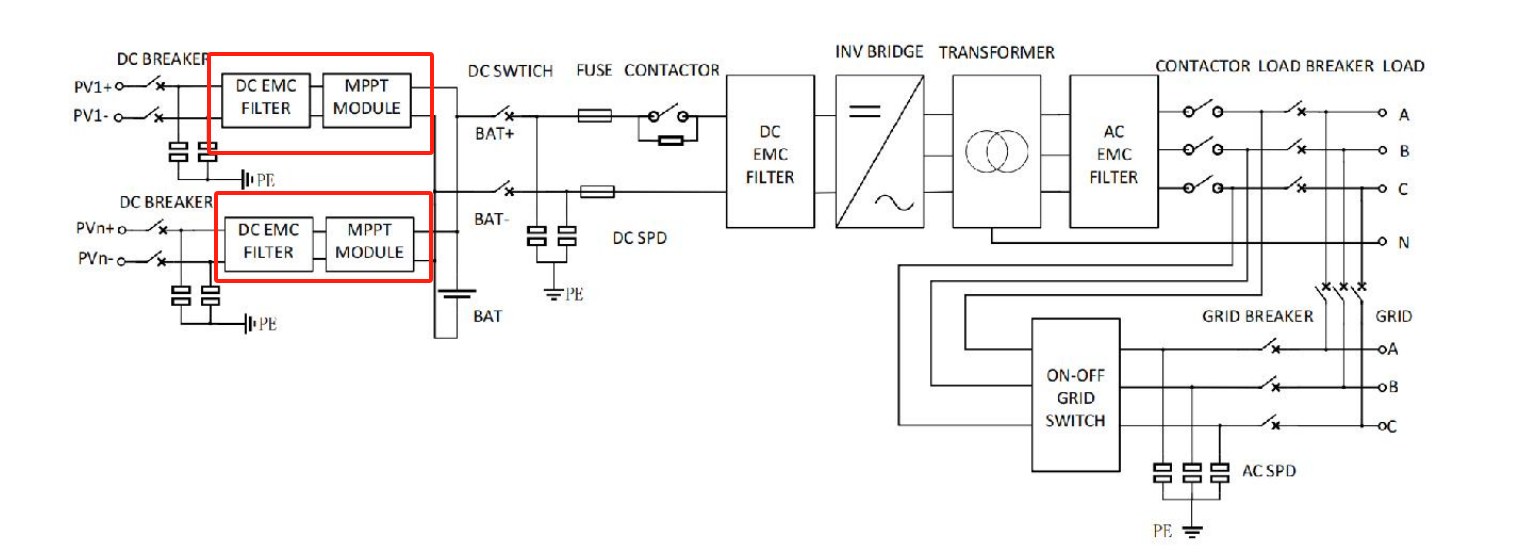

System Diagram

DC/DC Power Modules

Parameter

Product Model	GM-LDC30	GM-LDC60
DC Low Voltage Side
Maximum DC Voltage (V)	900
Operating Voltage Range (V)	200-900
DC circuit Number	1
Rated Power（KW）	30	60
Maximum Power (KW)	33	66
Maximum Current (A)	75	150
DC high Voltage side
Maximum DC Voltage (V)	1000
Operating Voltage Yange (V)	300-1000
DC Circuit Number	1
Rated Power（KW）	30	60
Maximum Power (KW)	33	66
Maximum Current (A)	75	150
General Parameters
Efficiency	98.0%	98.6%
Protection Function	Reverse polarity protection, surge protection, insulation monitoring
Isolation Transformer	NO
Protection Level	IP20
Cooling Method	Intelligent air cooling
Relative Humidity	0-95%, non-condensing
Operating Temperature	-30~+55℃
Altitude	3000m
Standby Power Consumption	＜20W
Communication	RS485
Communication Protocol	MODBUS-RTU
Reference Weight（Kg）	18	24
Reference Size(WDH)(mm)	436650133
