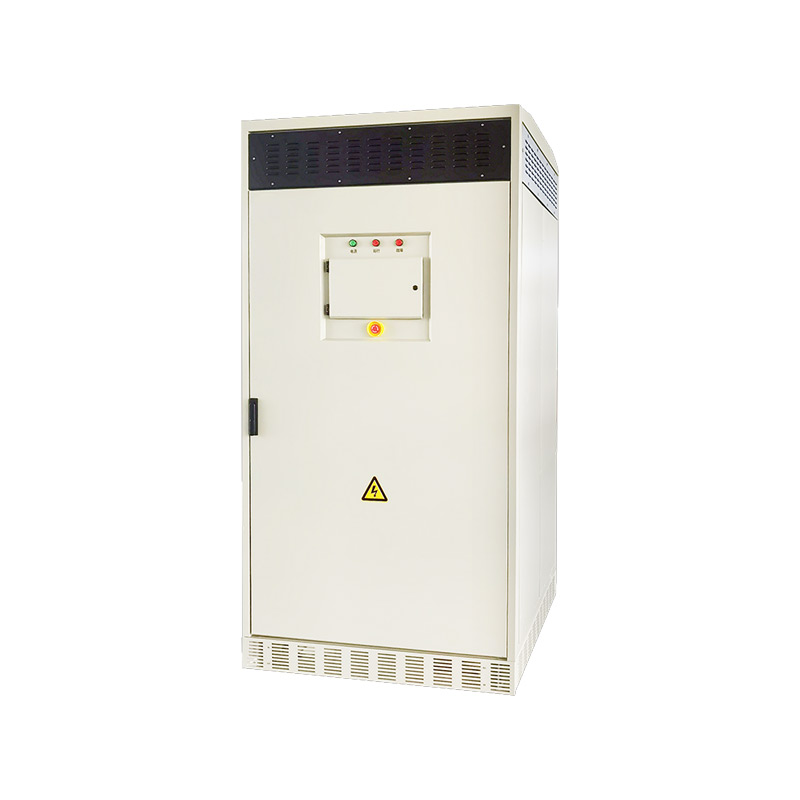

Power Conversion System (1375kw-1725kw)

This Power Conversion System adopts advanced three-level topology, with a conversion efficiency of up to 99%, adapts to DC 1500V, and has a wide operating voltage range. It has the functions of reactive power compensation, battery charge and discharge management, and independent operation of isolated grids, supports multi-machine parallel expansion, and has multiple safety protections and island effect protection. It can flexibly switch between multiple operating modes to adapt to different application scenarios, and has an IP54 protection level for outdoor installation, which is safe and reliable.

Item No :
GM-LEG1575K
Payment :
TT/LC
Product Origin :
China
Custom Made :
Yes
Lead Time :
20 days
Warranty :
5 years

Inquiry now

Product Details

Features

Smart & Flexible

Efficient & Intelligent

Safety & Stability

Widely Compatible

It adopts advanced three-level topology to achieve a conversion efficiency of up to 99%.
This Power Conversion System supports DC 1500V input and has a wide operating voltage range.
Designed for outdoor environments, with a protection level of IP54, it is suitable for harsh weather.
Integrates multiple safety mechanisms and has island effect protection function.
It supports reactive power compensation and independent operation in isolated grids, and can be expanded by connecting multiple machines in parallel.
Built-in battery charge and discharge management function, flexible switching between multiple operating modes.

Parameter

Model	GM-LEG1375K	GM-LEG1575K	GM-LEG1725K
Maximum DC Voltage (V)	1500
Minimum DC Voltage (V)	800	915	1000
DC Voltage Operating Range (V)	800-1500	915-1500	1000-1500
Maximum DC Current (A)	1935
AC Side (Grid-connected)
Rated Output Power (KW)	1375	1575	1725
Maximum Output Power (KVA)	1512	1732	1897
Rated AC Current(A)	1443
Maximum AC Current (A)	1587
Rated AC Voltage(V)	550	630	690
AC Voltage Range (V)	467.5-605	535.5-693	586.5-759
Rated Grid Frequency (Hz)	50
Grid Frequency Range (Hz)	45-55
Total Current Waveform Distortion Rate	＜3% rated power
Power Factor	＞0.99 rated power
Feed Phase Number/Output Phase Number	3/3
AC side (off-grid)
Rated AC Voltage (V)	550	630	690
AC Voltage Range (V)	467.5-605	535.5-693	586.5-759
Rated Output Frequency (Hz)	50
AC Voltage Distortion Rrate	＜3% linear load
DC Voltage Component (V)	＜0.5%Un linear load
Unbalanced Load Capacity	100%
Protect
Surge Protection	Yes
Power Grid Monitoring	Yes
Overheat Protection	Yes
General Parameters
Maximum Efficiency	98.0%
Isolation Transformer	NO
Protection Level	IP54
Cooling Method	Intelligent forced air cooling
Relative Humidity	0-100%
Operating Temperature (°C)	-30~+60
Altitude (m)	3000
Dispatch Communication Method	RS485、CAN、Ethernet
Communication Protocol	MODBUS-RTU/TCP
Reference Weight	1500
Reference Size (WDH) (mm)	120014502400
