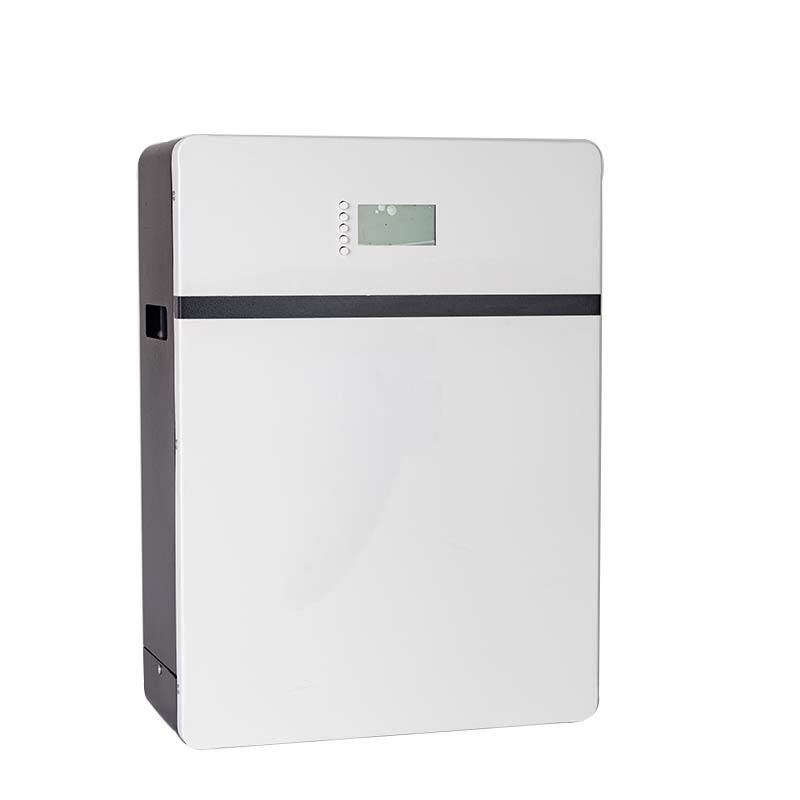

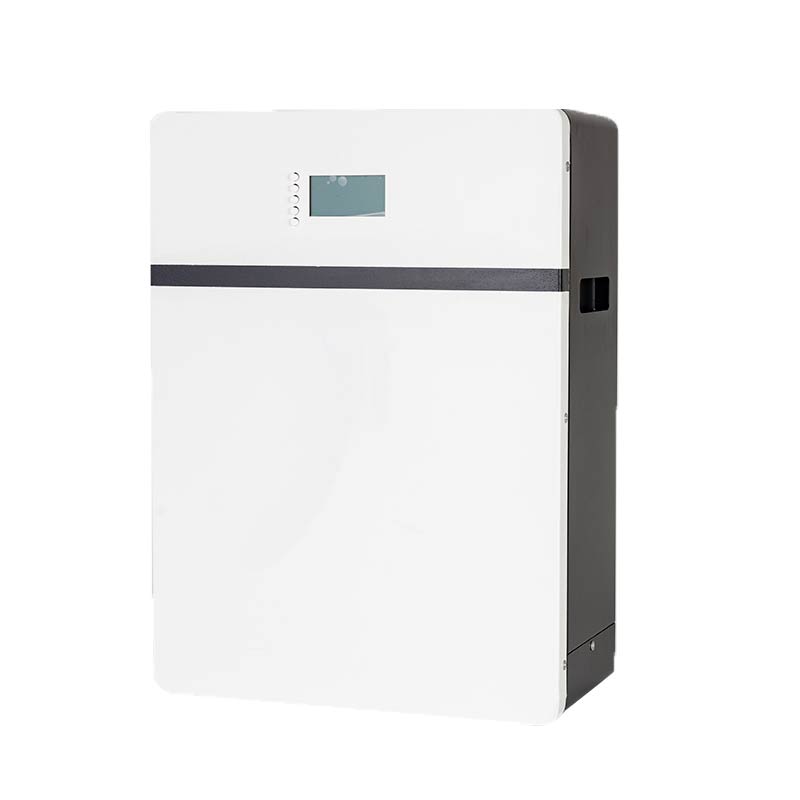

Wall-Mounted LiFePO₄ Energy Storage Battery | Home Energy Storage Battery 5kWh
The GreenMore GM-ESS-B100S16 is a 5.12kWh wall-mounted LiFePO₄ home battery designed for residential and small commercial energy storage. Built with Grade-A square LFP cells (3.2V, 100Ah), it delivers 6,000+ charge cycles with strong thermal stability and long-term reliability. Up to 8 units can be connected in parallel, scaling capacity from 5.12kWh to 40.96kWh without replacing the original system.
An intelligent BMS provides multi-level protection against overcharge, over-discharge, over-current, short circuit and temperature extremes, with automatic cell balancing. The battery integrates with mainstream hybrid and off-grid inverters via CAN/RS485, supports remote monitoring through the GreenMore mobile app over WiFi/GPRS, and runs on quiet natural cooling inside an IP54 enclosure. Certified CE, IEC, MSDS and UN38.3. Backed by a 3-year warranty.
Item No :
GM-ESS-B100S16Payment :
TT/LCProduct Origin :
ChinaCustom Made :
YesShipping Port :
Shanghai, Nanjing, Ningbo, Guangzhou, Shenzhen, etc.Lead Time :
20 daysWarranty :
3 years
High-Safety LFP
Parallel Expansion
Inverter Compatible
App Monitoring
Smart BMS
Premium 3.2V/100Ah square lithium iron phosphate cells offer strong thermal stability and 6,000+ cycles at 80% DOD, with no thermal runaway under normal operating conditions.
Start with one 5.12kWh unit and connect up to 8 packs in parallel. Capacity grows with the household, with stable synchronized operation between packs.
Real-time monitoring of voltage, current, SOC and temperature, with overcharge, over-discharge, over-current, short-circuit and over-temperature protection plus automatic cell balancing.
Works with mainstream hybrid and off-grid inverter brands over CAN and RS485, shortening commissioning and keeping communication stable in existing solar systems.
WiFi and GPRS connectivity let homeowners check SOC, power flow, cycle count and fault alerts from the GreenMore app, from anywhere.
The slim 550×360×163mm enclosure fits utility rooms, garages and technical cabinets. Natural cooling keeps it quiet and low on upkeep.
High-safety LFP chemistry with balanced, stable voltage and energy output and a stable internal mechanical structure.
Real-time monitoring of voltage, current and temperature, multiple safety measures and automatic cell balancing.

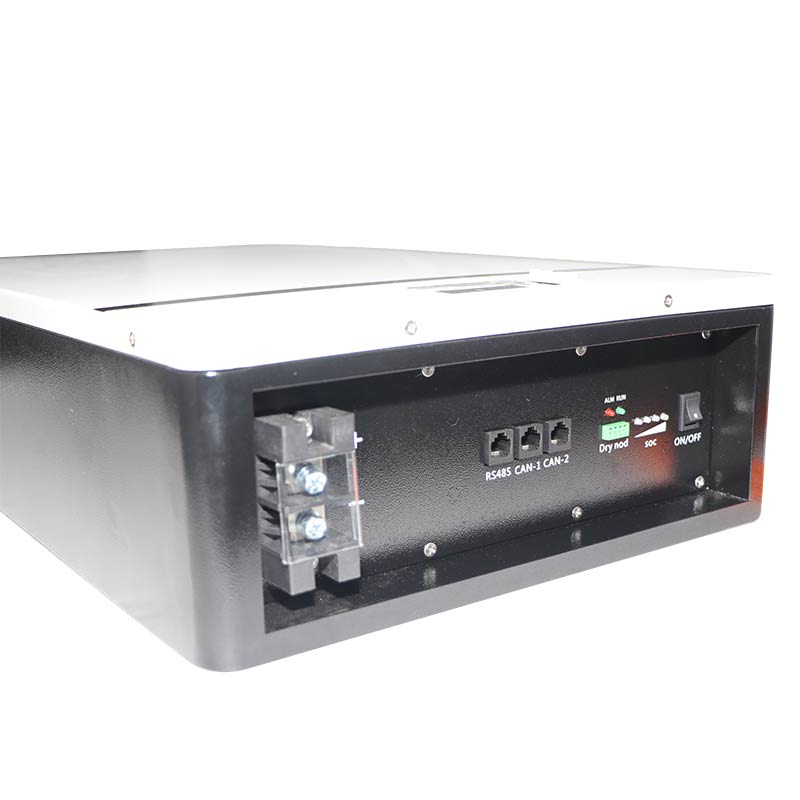

CAN and RS485 interfaces integrate seamlessly with mainstream inverters and enable remote energy management.
Slim, space-saving housing with IP54 dust and moisture protection and natural, fanless cooling.
Supports connection of multiple units with stable synchronous operation, for households with higher demand.
LED indicators show operating status, SOC and faults, with automatic shutdown when abnormal conditions are detected.
| Battery Parameters | |
| Cell Type | LFP square battery cell |
| Cell Specifications | 3.2V / 100Ah |
| Rated Capacity | 100Ah |
| Rated Total Energy | 5.12kWh (single unit) |
| Rated Voltage | 51.2V |
| Voltage Range | 40–58.4V |
| Parallel Expansion | 1–8 units (up to 40.96kWh) |
| Electrical Parameters | |
| Standard Charging Current | 0.5C continuous (50A) |
| Maximum Charging Current | 1C pulse (100A) |
| Standard Discharging Current | 0.5C continuous (50A) |
| Maximum Discharging Current | 1C pulse (100A) |
| Communication | CAN / RS485; WiFi / GPRS |
| General Parameters | |
| Weight | 41kg (single unit) |
| Dimensions (H×W×D) | 550×360×163mm |
| Protection Level | IP54 |
| Cooling Method | Natural cooling |
| Ambient Temperature | Charging 0–55°C / Discharging −20–60°C / Storage −10–45°C |
| Operating Humidity | 5–95% relative humidity |
| Indicators | Alarm / Operation / SOC |
| Installation | Wall-mounted |
| Certification | CE, IEC, MSDS, UN38.3 |
| Warranty | 3 years |
Note: Product dimensions and parameters are subject to the actual delivered product. Updated on October 1, 2026.
Solar energy is stored during the day and used at night, thus reducing dependence on the power grid.
Power is supplied to important appliances during power outages to ensure the normal operation of the household.
Reliable 24/7 power where no grid exists; add packs in parallel whenever more capacity is needed.
Add storage to an existing grid-tied solar system for higher self-consumption, lower peak charges and backup cover.
CE, IEC, MSDS and UN38.3 certification covers international safety and battery transport standards. Every unit is full-capacity tested before shipment.
Overcharge, over-discharge, over-current, short-circuit, over-temperature and cell-imbalance protection, with automatic balancing for long-term consistency.
Since 2017 GreenMore has built home batteries around Grade-A LFP cells from qualified suppliers, with control from incoming material to final test.
Trusted Support
Remote technical guidance for installation and commissioning, app-based monitoring, and a 3-year warranty with repair or replacement service for customers across Europe, the Americas, the Middle East and Africa. Explore our full home energy storage range.
Grade-A LFP cells are inherently stable and non-toxic, with no thermal runaway under normal operating conditions, backed by multi-layer BMS protection.
6,000+ cycles at 80% DOD supports 15+ years of daily use, covered by the 3-year warranty.
Yes. Up to 8 units run in parallel, from 5.12kWh to 40.96kWh, without replacing the original pack.
CAN/RS485 communication makes it compatible with most mainstream hybrid and off-grid inverter brands, with straightforward setup.
Utility rooms, garages and technical cabinets; the IP54 slim wall-mount design runs quietly on natural cooling.
Yes. WiFi/GPRS keeps SOC, power flow, cycles and alerts visible in real time through the GreenMore mobile app.
