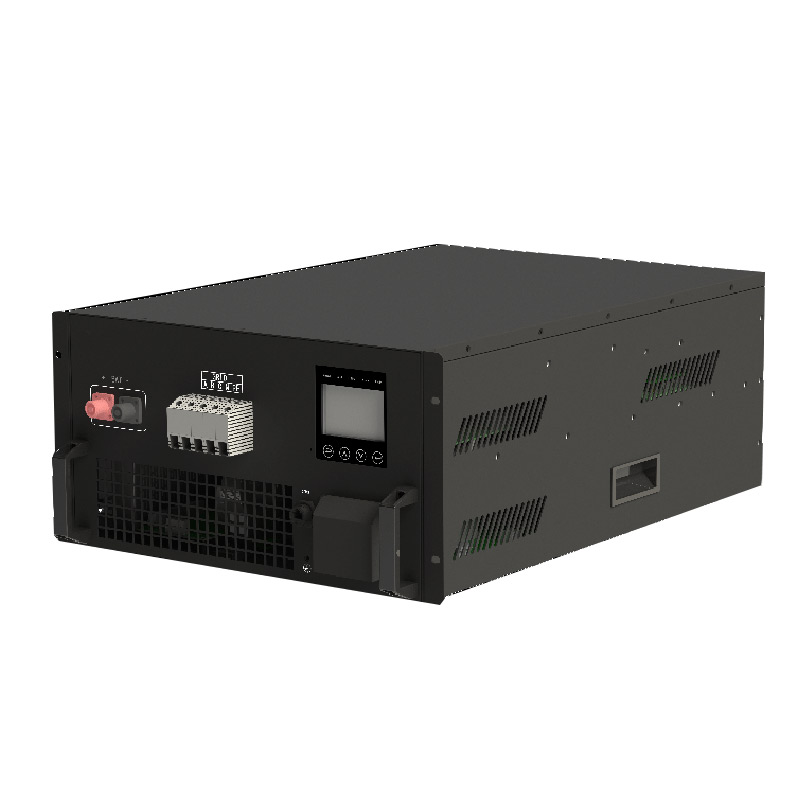

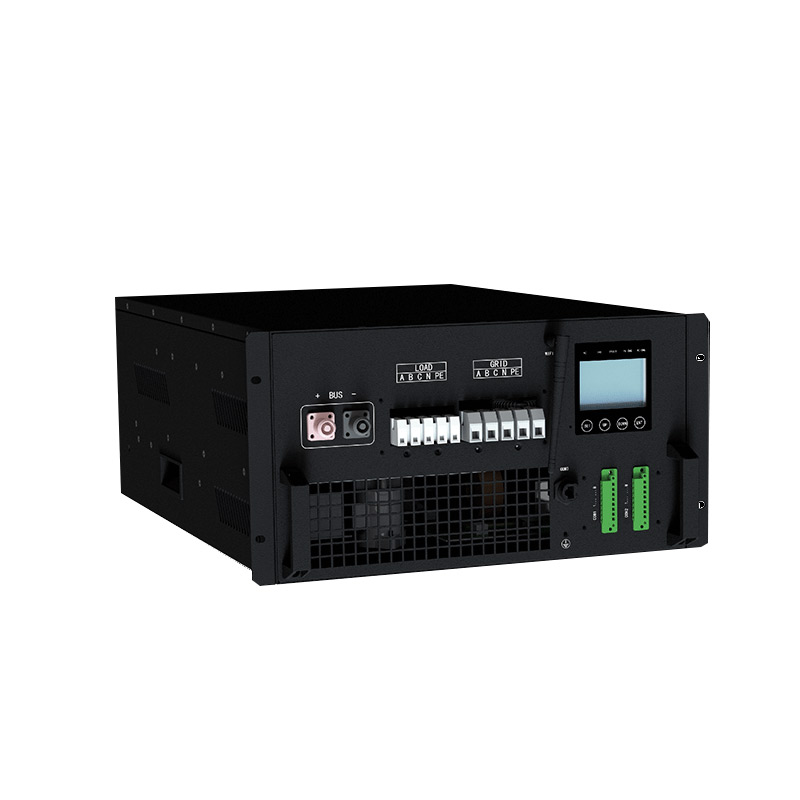

Commercial Hybrid Inverter (High Frequency)

This Commercial Hybrid Inverter is an efficient and flexible power conversion device with modular design that supports parallel expansion of multiple machines. It has bidirectional AC/DC conversion capability, can realize peak shaving and valley filling, dynamic capacity increase, reactive power compensation and other functions, is compatible with multiple operating modes, and has high/low voltage ride-through and black start capabilities.

Item No :
GM-LEG100K
Payment :
TT/LC
Product Origin :
China
Custom Made :
Yes
Lead Time :
20 days
Warranty :
5 years

Inquiry now

Product Details

Commercial Hybrid Inverter

Wide Range of Applications
Applicable to various scenarios such as grid-side energy storage, user-side energy storage, power generation-side energy storage, industrial and commercial energy storage, microgrids, and off-grid systems
High Reliability
Modular design allows for quick and easy replacement, and failure of a single module does not affect overall operation; wide range DC voltage input, suitable for different types of energy storage batteries
Intelligent and Efficient
This Commercial Hybrid Inverter use advanced power devices and control algorithms to improve power conversion efficiency; support EMS access to achieve remote monitoring and optimized scheduling

Features

Compatible with multiple battery types: supports access to multiple battery types.
Complete protection mechanism: It has comprehensive multiple protection functions.
Strong environmental adaptability: adapt to complex operating environments.
Wide voltage DC input: The DC side supports wide voltage range design.
Local EMS integration: Integrate local energy management system functions.
Strong load resistance: three-phase four-wire 100% unbalanced load, strong resistance to impact load
Efficient topology control: three-level topology structure + DSP digital control, efficiency up to 99.0%, support module expansion and optional anti-reverse flow/on-grid and off-grid switching function.

Parameter

Model	GM-LEG30K	GM-LEG60K	GM-LEG100K	GM-LEG125K	GM-LEG200K
DC Side
DC Voltage Range（V）	650-900	650-900	650-900	650-900	1060-1500
Number of Input Channels	1	1	1	1	1
Supported Battery Types	Lithium battery, lead-carbon battery, lead-acid battery
AC Side (grid-connected)
Rated Power (KW)	30	60	100	125	200
Maximum Power (VA)	33000	66000	110000	138000	220000
Maximum Output Current (A)	48	95	159	198	184
Rated Grid Voltage（V）	3/N/PE，230/400	3/N/PE，230/400	3/N/PE，230/400	3/N/PE，230/400	3/PE，690
Rated Grid Frequency（Hz）	50/60(±5%)
Total Current Waveform Distortion Rate	＜3%（rated power）
DC Component	＜0.5% In
AC Side (off-grid)
Rated Output Power (KW)	30	/	100	125	200
Maximum Output Power (VA)	33000	/	110000	138000	220000
Overload Capacity	110% long-term operation	/	110% long-term operation	110% long-term operation	110% long-term operation
Rated Output Voltage (V)	3/N/PE，230/400	/	400	400	400
Rated Frequency (Hz)	50/60	/	50/60	50/60	50/60
AC Voltage Distortion Rate	＜3% linear load	/	＜3% linear load	＜3% linear load	＜3% linear load
With Unbalanced Load Capacity	100%	/	100%	100%	100%
General Parameters
Maximum Efficiency	98.0%	98.0%	98.0%	98.0%	99.0%
Protection Function	DC reverse connection protection, AC short circuit protection, grid monitoring, island protection, surge protection
Isolation Transformer	NO
Protection Level	IP20
Cooling Method	Intelligent air cooling
Relative Humidity	≤95% (no condensation)
Operating Temperature (°C)	-30~+55
Altitude (m)	3000
Display	Touch screen/external
Dispatch Communication Method	Ethernet, RS485
BMS Communication Method	RS485、CAN
Communication Protocol	MODBUS-RTU/TCP
Reference Weight (Kg)	40	40	50	50	86
Reference Size (WDH) (mm)	483650240	483650240	436650256	436650256	720640270
