Welcome to GreenMore

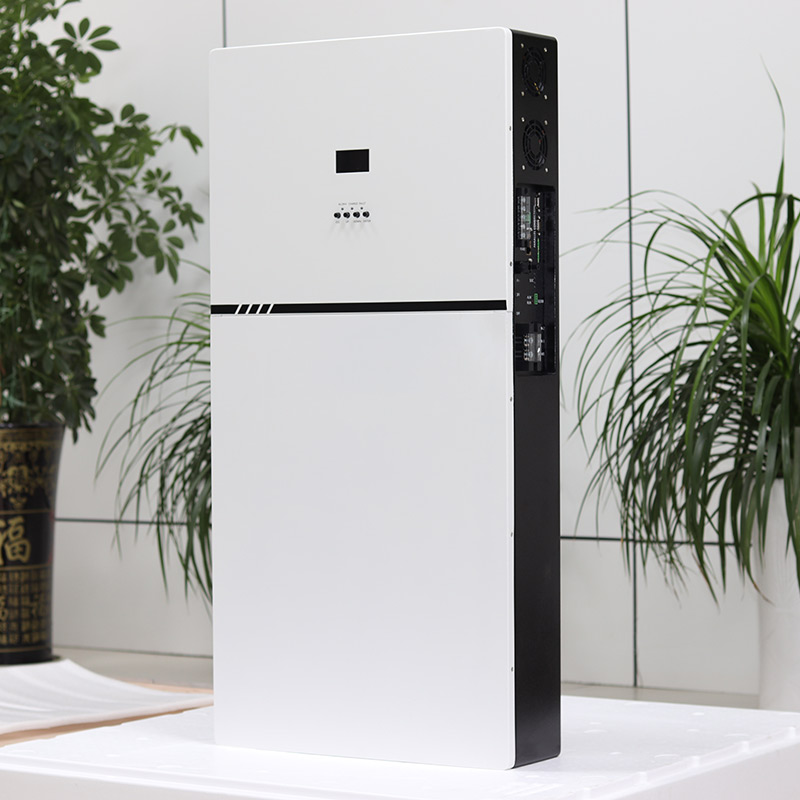

The GreenMore Energy Storage Battery with Solar Inverter is an all-in-one home energy storage system that integrates a built-in 5000W solar inverter and premium LiFePO₄ battery cells into a single compact unit. Rated at 51.2V / 10.24kWh, it supports AC bypass, inversion and photovoltaic power generation for 24-hour uninterrupted power supply.
The system offers 4 intelligent charging modes — pure solar, hybrid charging, grid charging and priority modes — switchable based on real-time energy needs. With CAN, RS485 and RS232 communication interfaces, it ensures full integration with major inverter brands and smart home EMS platforms. Certified to CE, IEC62619, MSDS and UN38.3, the residential energy storage system delivers safe, reliable and efficient clean energy management for homes, villas and small commercial facilities.
Item No :
GM-ESS-BP200S16Payment :
TT/LCProduct Origin :
ChinaCustom Made :
YesLead Time :
20 daysWarranty :
3 years

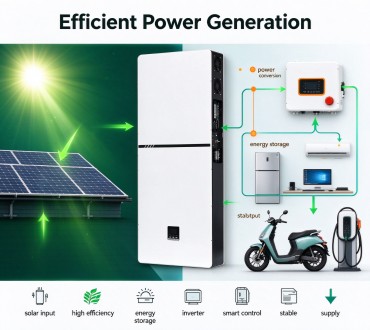

Efficient Power Generation
Convenient Operation & Maintenance
Safe and Reliable

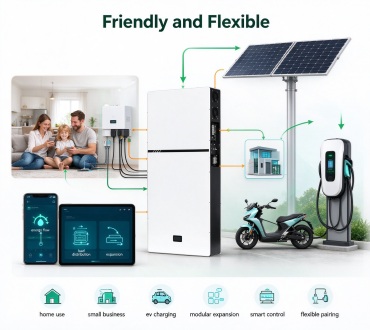

Friendly and Flexible
Battery, MPPT controller and 5000W pure sine wave inverter share a single enclosure — no complex external wiring. Installation time drops by up to 50% and compatibility issues between separate components are eliminated.
The built-in MPPT charge controller accepts 120–450V PV input with 0–80A adjustable charging current, maximizing solar harvest across varying light and weather conditions.
High-consistency Grade-A lithium iron phosphate cells deliver over 6,000 cycles at 80% DOD — equivalent to more than 10 years of daily use — with inherently safe, thermal-runaway-free chemistry.

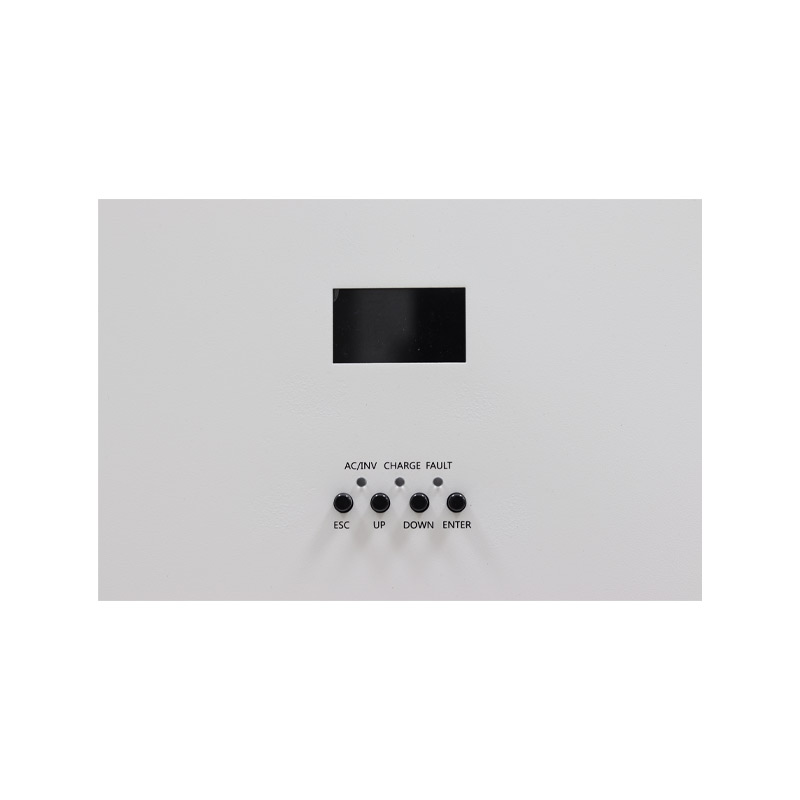

Solar Only, Hybrid, Grid Priority and Battery Priority modes cover self-consumption, peak-valley arbitrage and backup scenarios. Switch via LCD panel, app or communication protocol.
Automatic switching between AC grid, PV generation and inverter output completes within 20ms, delivering true 24-hour uninterrupted power for critical household loads.

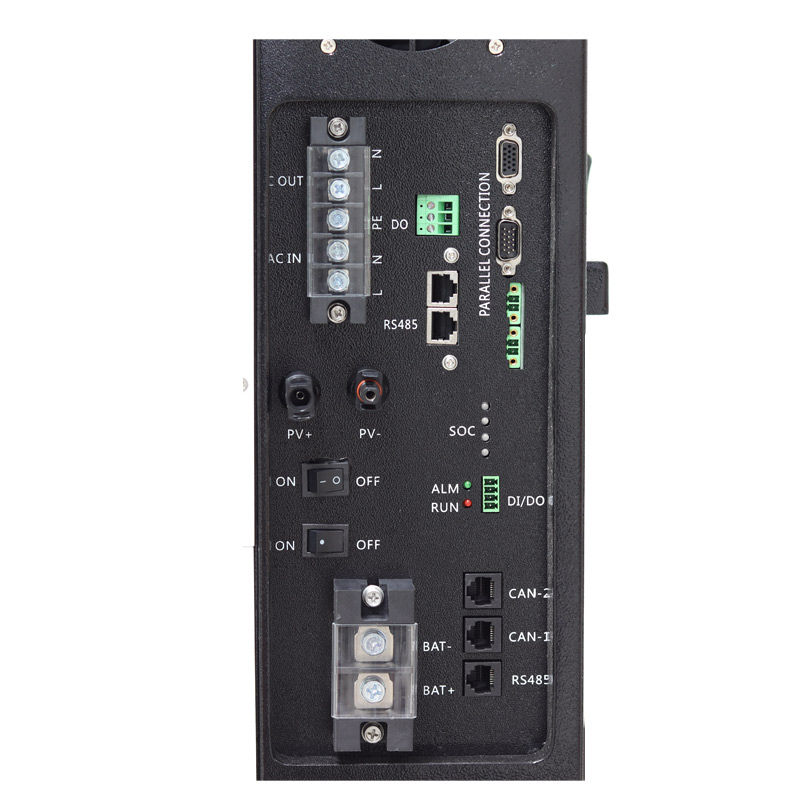

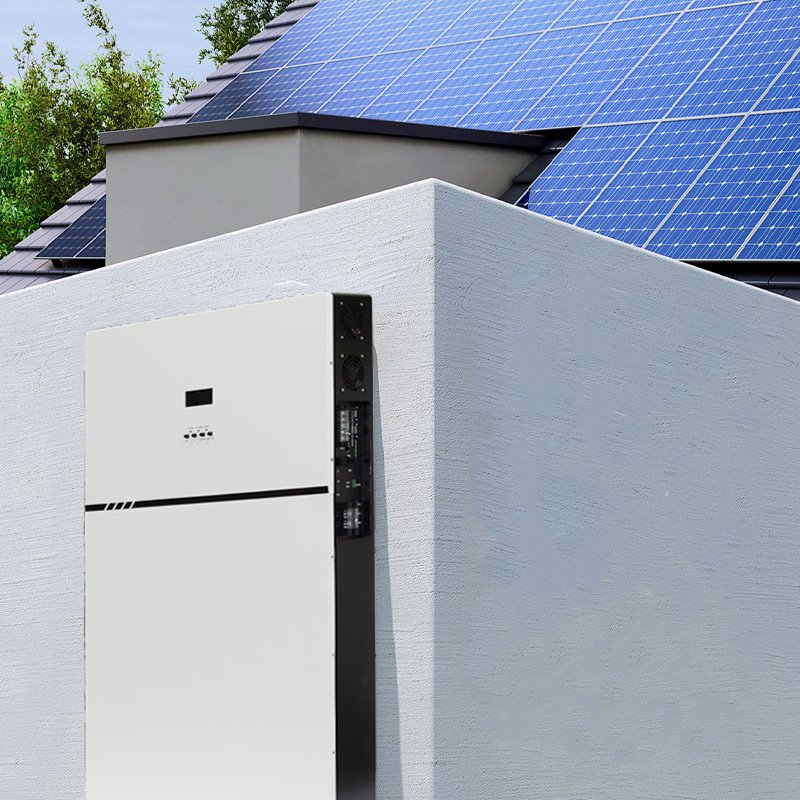

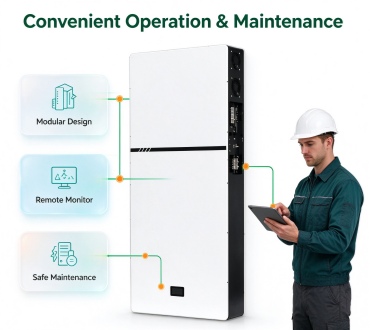

Supports wall-mounted and floor-standing deployment. CAN/RS485/RS232 interfaces enable remote monitoring and integration with smart home EMS platforms.
| Parameter | GM-ESS-BP200S16 |
|---|---|
| Battery Parameters | |
| Cell Type | LFP square cell, 3.2V 200Ah |
| Rated Capacity | 200Ah |
| Rated Total Energy | 10.24kWh |
| Rated Voltage | 51.2V |
| Voltage Range | 40–58.4V |
| Photovoltaic Power Generation Parameters | |
| Maximum Output Power | 5000W |
| MPPT Voltage Range | 120–450V |
| Solar Charging Current | 0–80A adjustable |
| AC Side Parameters | |
| Rated Output Power | 5000W |
| Rated Output Voltage | 230Vac (200/208/220/240Vac adjustable) ±5% |
| Output Frequency | 50Hz ±0.3Hz / 60Hz ±0.3Hz |
| Efficiency | Input >95%, Output >90% |
| System Parameters | |
| Weight | 90 kg |
| Dimensions (H×W×D) | 1100×540×160 mm |
| Protection Level | IP54 |
| Cooling Method | Forced air cooling |
| Operating Temperature | Charging: 0°C–55°C / Discharging: -20°C–60°C / Storage: -10°C–45°C |
| Operating Humidity | 5–95% RH |
| Communication | CAN / RS485 / RS232 |
| Installation Type | Wall-mounted / Floor-standing |
| Certification | CE, IEC62619, MSDS, UN38.3 |
| Warranty | 3 years |
Note: Product dimensions and parameters are subject to the actual delivered product. Updated on October 1, 2026.
Stores surplus daytime solar energy for night-time use. The 120–450V MPPT controller reduces grid dependency and electricity bills — ideal for apartments, villas and townhouses.
Charges during low-tariff hours and discharges at peak rates. The 4 charging modes support automatic or scheduled switching for residential and small commercial users.
Switches to off-grid mode within 20ms during blackouts. 10.24kWh sustains lighting, refrigeration, routers and security systems for 8–12 hours.

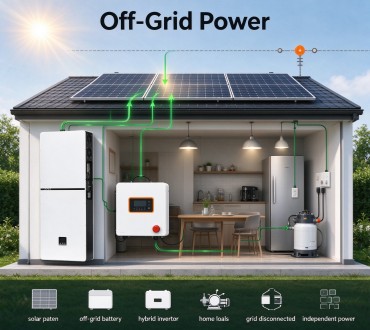

For farms, remote villages, telecom base stations and field stations — solar charging, battery storage and AC output in one IP54-rated unit built for harsh environments.

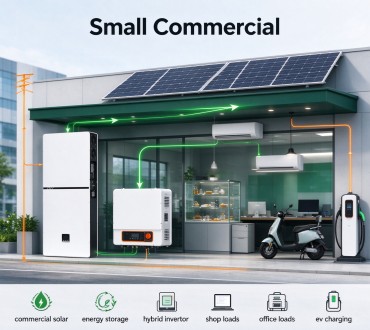

5000W output and 10.24kWh capacity suit small shops, clinics, schools, offices and workshops; multiple units can scale capacity with centralized EMS monitoring.

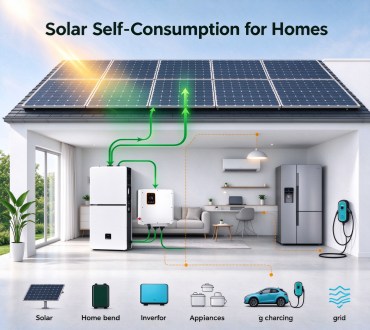

Solar Self-Consumption

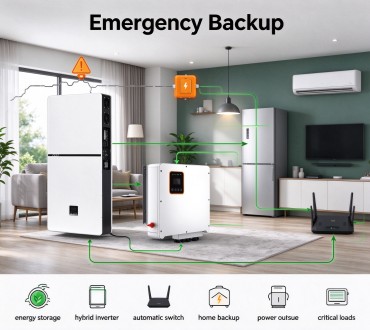

Emergency Backup
Off-Grid Power
Small Commercial

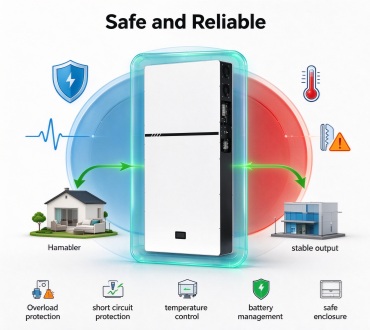

Grade-A lithium iron phosphate cells offer inherent thermal stability and eliminate thermal runaway risk. High cell consistency ensures long-term performance and reliability.
Over-current, over/under-voltage, over-temperature and short-circuit protection with automatic fault isolation and real-time SOC tracking — at cell, module and system level.
CE, IEC 62619, MSDS and UN38.3 certified by internationally recognized laboratories, covering product safety and global shipping compliance.
Trusted Support
GreenMore has focused on home energy storage since 2017, with every unit undergoing rigorous quality control from cell selection to final assembly. Systems carry a 3-year warranty and serve installers across Europe, North America, Africa and the Middle East. Explore our full range of home energy storage solutions.
Battery, inverter and MPPT controller share one enclosure — wiring complexity drops, space is saved by up to 40%, installation time is cut in half, and component compatibility issues disappear.
Solar Only maximizes renewables; Hybrid blends solar and grid; Grid Priority enables off-peak arbitrage; Battery Priority keeps a full reserve for backup. Switch via LCD panel or remotely.
No — the 5000W inverter is built in. If a separate external inverter is used, CAN/RS485/RS232 communication supports Growatt, Deye, Huawei, SMA, Victron and GoodWe systems.
Yes. Grid-tied to off-grid transfer takes less than 20ms, keeping lighting, refrigeration, communication and security loads running without interruption.
Every all-in-one system carries a 3-year warranty, remote diagnostics via CAN/RS485, on-site support through our distributor network, and rapid replacement of defective units. Extended coverage is available for large projects.
Yes — custom capacity, enclosure color and branding, protocol adaptation and logo printing. Our engineers work directly with installers and integrators. Contact our team with your project details.
