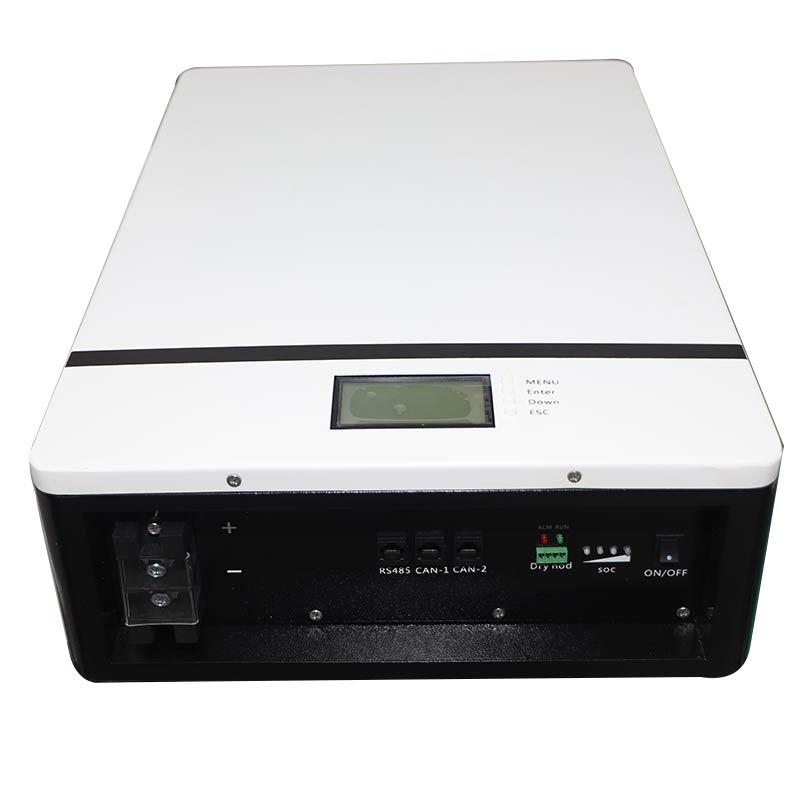

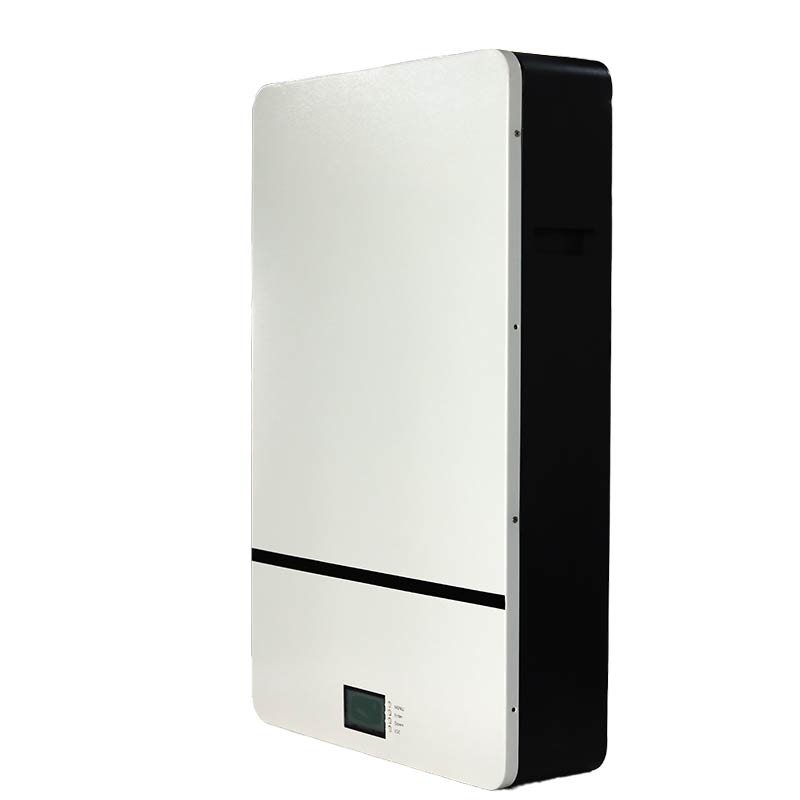

Home Battery Storage System

This Home Battery Storage System uses high-quality lithium iron phosphate cells to ensure high safety and long life, providing reliable protection for household electricity consumption. It supports up to 10 units in parallel to achieve flexible expansion and adapt to different electricity needs. The compact design, small footprint, easy installation, suitable for all kinds of home environments. The product is compatible with CAN, RS485 and RS232 communication protocols, which is convenient for access to smart home systems. The integrated design is beautiful and environmentally friendly, non-toxic and pollution-free, in line with the modern green life concept. In addition, it can adapt to multiple global mainstream inverter brands including Growatt, Deye, Huawei, SMA, etc., with strong compatibility, making installation easier and worry-free.

Item No :
GM-ESS-B200S16
Payment :
TT/LC
Product Origin :
China
Custom Made :
Yes
Lead Time :
20 days
Warranty :
5 years

Inquiry now

Product Details

Features

High Energy Density

Good Compatibility

High Security

Long Life

Using high-quality lithium iron phosphate batteries, high consistency, safety, reliability and long service life.
Supports parallel connection of up to 10 units and can be expanded on demand to meet different power requirements.
Compact structure, small footprint, easy installation.
Support CAN, RS485, RS232, easy for system integration and management.
This home battery storage system adopts an integrated design, which is simple, beautiful, safe and environmentally friendly.
Compatible with mainstream inverters such as Deye, Voltronic, SMA, Aiswei, Studer, Goodwe, Growatt, etc.

Parameter

Cell Type	LFP square battery cell
Battery Specifications	3.2V200Ah
Number of Battery Modules	Support 1~8 parallel connections
Rated Capacity	200Ah
Rated Total Energy	10.24kWh (single box)
Rated Voltage	51.2V
Electrical Parameters
Voltage Range	40~58.4V
Standard Charging Current	0.5C@Continuous
Maximum Charging Current	1C@Pulse
Standard Discharge Current	0.5C@Continuous
Maximum Discharge Current	1C@Pulse
Structural Parameters
Weight	80Kg (single box)
Dimensions (HWD)	780x480x197mm (single box)
Protection Level	IP54
Cooling Method	Natural cooling
Ambient Temperature	Charging: 0℃~55℃ / Discharging: -20℃~60℃ / Storage: -10℃~45℃
Operating Humidity	5~95%, relative humidity
Certification	MSDS/UN38.3/IEC/Transportation Identification Report
Alarm and Protection	Yes
Indicator Status	Alarm/Operation/SOC
Installation	Wall-mounted
Note: Product dimensions and parameters are subject to the actual delivered product
