BIPV (Building Integrated Photovoltaics) Three-Curved Solar Tile Roof: A Real-Scene Application of Traditional Chinese Antique-Style Glazed Corrugated Tile Solar Power Station
Home

Power Conversion System

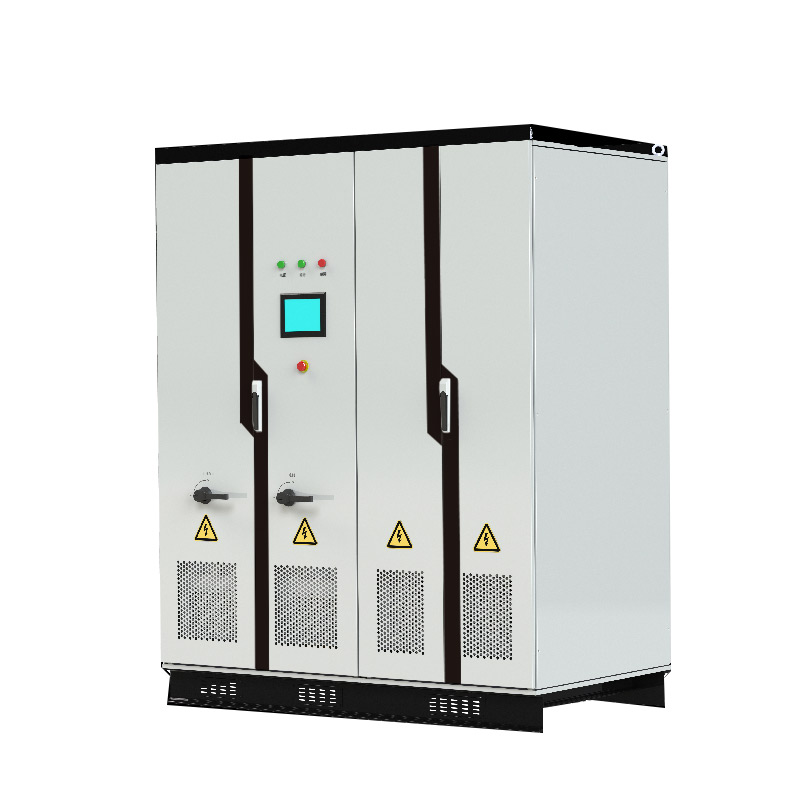

PCS Energy Storage Converter(Built-in Transformer 50~250kW)

PCS Energy Storage Converter(Built-in Transformer 50~250kW)

This PCS energy storage converter adopts industrial-grade design of power frequency topology, and AC/DC dual power backup ensures stable power supply for the control system. Its high power density design has a maximum efficiency of 97.6%, and it has excellent performance with high-performance DSP optimized control circuit.

  • Item No :

    GM-LEG100K

  • Payment :

    TT/LC

  • Product Origin :

    China

  • Custom Made :

    Yes

  • Lead Time :

    20 days

  • Warranty :

    5 years
Inquiry now
  • Product Details

Features





High Efficiency

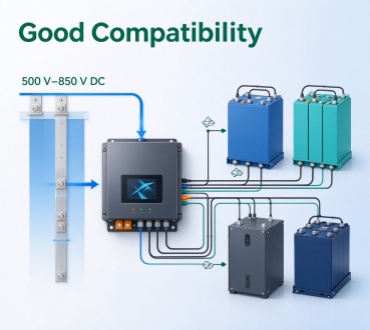

Good Compatibility

Safe & Reliable

Smart Management





  • Can be used in extreme environments such as high altitude and severe cold.
  • This PCS (Power Conversion System) adopts industrial frequency topology, industrial-grade design and strong stability.
  • AC/DC dual power supply backup ensures the reliability of power supply to the control system.
  • High power density design, the highest efficiency is 97.6%.
  • Adopt high-performance DSP and optimize control circuit to achieve better performance.
  • DC wide input voltage range design supports multiple battery types.
  • It has on-grid charging and discharging, and off-grid independent inverter functions.
  • Supports reactive power and active power regulation.
  • Supports diesel engine access, with optional off-grid and on-grid seamless switching function.
  • Cold start with load, 100% unbalanced load in three phases, strong impact resistance.



Parameter



Model GM-LEG50KT GM-LEG100KT GM-LEG250KT GM-LEG500KT GM-LEG630KT
DC input
Maximum DC Voltage (V) 850
Operating Voltage Range (V) 500-850 500-850 500-850 500-850 630-850
AC Output (Grid-connected)
Rated Output Power (KW) 50 100 250 500 630
Maximum Output Power (KVA) 55 110 275 550 693
Maximum Output Current (A) 79 159 397 794 1000
Rated Grid Voltage (V) 3W/N/PE，400
Rated Grid Frequency (Hz) 50/60
Grid Frequency Range (Hz) 45-55/55-65
Power Factor ＞0.99
Power Factor Adjustable Range 0.99 (leading) ~ 0.99 (lagging)
Total Current Waveform Distortion Rate ＜3% rated power
AC Output (Off-grid)
Rated Output Power (KW) 50 100 250 500 630
Maximum Output Power (KVA) 55 110 275 555 693
Rated Output Voltage (V) 400
Rated Frequency (Hz) 50/60
Overload Capacity 110% long-term operation
AC Voltage Distortion Rate ＜3%（Linear load）
With Unbalanced Load Capacity 100%
Protect
DC Overvoltage Protection Yes
DC Short Circuit Protection Yes
AC Overvoltage Protection Yes
Reverse Polarity Protection Yes
Module Temperature Protection Yes
General Parameters
Maximum Efficiency 96.0% 96.0% 97.0% 97.6% 97.6%
Isolation Transformer Yes
Protection Level IP20
Cooling Method Temperature controlled forced air cooling
Relative Humidity 0~95% non-condensing
Operating Temperature (°C) -30~+55
Altitude (m) 3000
Standby Power Consumption (W) ＜50
Display Touch LCD
Dispatch Communication Method Ethernet, RS485
BMS Communication Method RS485、CAN
Communication Protocol Modbus-RTU/TCP
Reference Weight (Kg) 650 750 1600 3000 3200
Reference Size (W*D*H) (mm) 1000*800*2015 1000*800*2015 1000*1050*2260 2100*1050*2260 2400*1050*2260



Hot Tags : power conversion system manufacturer Industrial Grade Energy Storage PCS power conversion system for energy storage power electronics power conversion system bess power conversion system power conversion system solar 50kW Off Grid Energy Power Conversion System 250kW On Grid Storage PCS
