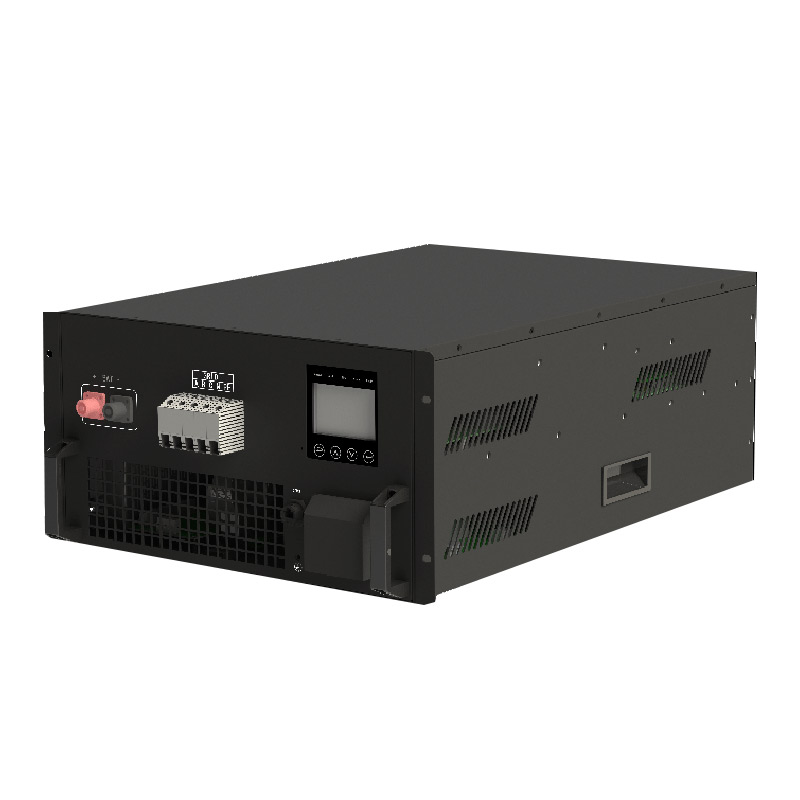

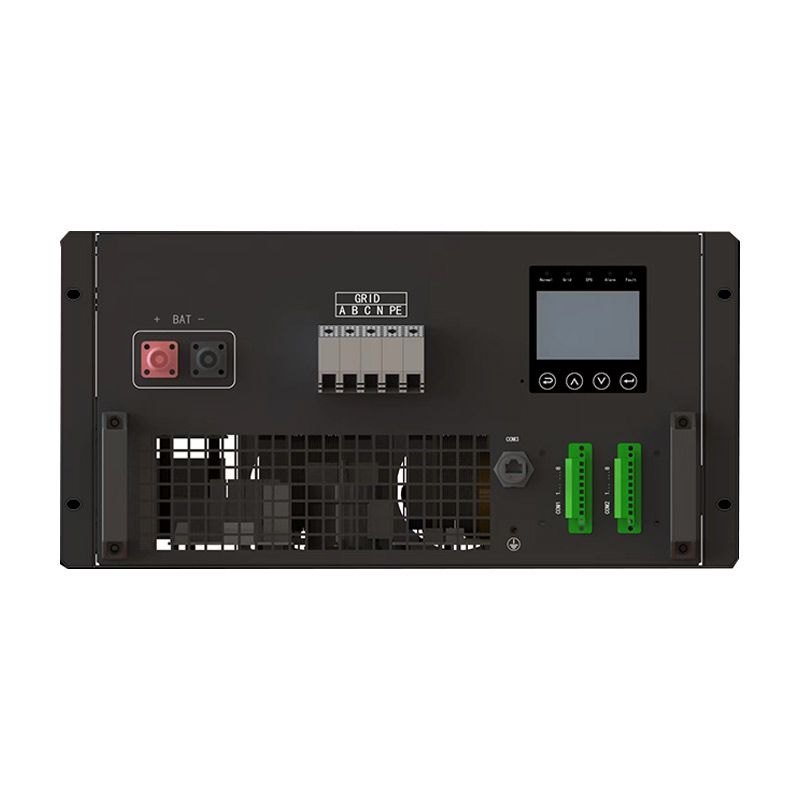

Rack-mounted Hybrid Inverter

This product is a rack-mounted hybrid inverter that integrates efficient power conversion and intelligent control technology, supporting photovoltaic power generation, battery energy storage and grid power complementation. It uses advanced MPPT technology to optimize photovoltaic output in real time and improve power generation efficiency. The compact rack-mounted design saves space and has built-in multiple protections such as overvoltage/overcurrent/leakage. It is suitable for industrial and commercial photovoltaics, off-grid systems and household photovoltaic storage projects, providing stable and reliable new energy solutions.

Item No :
GM-LEI30K
Payment :
TT/LC
Product Origin :
China
Custom Made :
Yes
Lead Time :
20 days
Warranty :
5 years

Inquiry now

Product Details

Features

Efficient Power Ggeneration

Safe and Reliable

Durable and Energy-saving

Smart and Flexible

Built-in ATS module enables smooth transition between off-grid and on-grid modes.
Supports wide range DC voltage input and is compatible with various types of batteries.
It has multiple working modes and supports online mode switching operations.
The priority of charging source and load source can be flexibly adjusted to adapt to three-phase four-wire 100% unbalanced load.
Support multi-branch photovoltaic MPPT access to improve power generation efficiency.
Realize refined battery management and support constant voltage, constant current, and constant power charging and discharging modes.
The modular design facilitates parallel connection and adopts a three-level topology structure with a maximum efficiency of 98.6% and excellent power quality.
This rack-mounted hybrid inverter is widely used in microgrids, communication base stations, factories, farms, hospitals, shopping malls, hotels, etc.

Parameter

Model	GM-LEI20K	GM-LEI30K
DC Input (PV)
Maximum Input Voltage (V)	900
MPPT Voltage Range (V)	250-900
MPPT Number	3
Input Power Per Channel (KW)	10
Maximum Current Per Input	25
Battery
Supported Battery Types	Lithium battery, lead-carbon battery, lead-acid battery, etc.
Operating Voltage Range（V）	250-650
AC Output (Grid-Connected)
Rated Output Power（KW）	20	30
Maximum Output Power (KVA)	22	33
Rated Grid Voltage (V)	3/N/PE，230/400
Rated Grid Frequency (Hz)	50/60
Total Current Waveform Distortion Rate	＜3% rated power
AC Output (Off-Grid)
Rated Output Power（KW）	20	30
Maximum Output Power (KVA)	22	33
Overload Capacity	110% long-term operation
Rated Output Voltage (V)	3/N/PE，230/400
Rated Frequency (Hz)	50/60
AC Voltage Distortion Rate	＜3% linear load
With Unbalanced Load Capacity	100%
General Parameters
Maximum Efficiency	98.6%
Protection Function	Short circuit protection, reverse polarity protection, surge protection
Isolation Transformer	NO
Protection Level	IP20
Cooling Method	Intelligent air cooling
Relative Humidity	0~95% non-condensing
Operating Temperature (°C)	-30~+55
Altitude (m)	3000
Standby Power Consumption (W)	＜50
Display	Touch LCD
Dispatch Communication Method	Ethernet, RS485
BMS Communication Method	RS485、CAN
Communication Protocol	Modbus-RTU/TCP
Combination	1(DC/DC)+1(DC/AC/ATS)
Reference Weight（Kg）	40+40
Reference Size (WDH)(mm)	436650240(DC+DC)+436650240(DC+AC+ATS)
Installation	Rack Mount
