The GreenMore Three-Phase Hybrid Inverter (GM-HW series, 6–15kW) is a high-performance solar + storage solution designed for residential villas and small commercial energy-storage projects. It integrates PV input, battery charging/discharging, and grid interaction in a single IP65-rated unit, supporting on-grid, off-grid, and backup modes with seamless switching under 10ms.
With a maximum efficiency of 97.9% and dual MPPT trackers, the GreenMore GM-HW series handles 100% unbalanced loads across all three phases — a critical advantage for complex residential and commercial environments. Compatible with LiFePO₄ and lead-acid batteries via CAN/RS485 BMS communication, it offers flexible system design for installers. All models carry a 3-year warranty and comply with IEC/EN international certifications for European, Middle Eastern, African, and Southeast Asian markets.
Item No :
GM-HW8KPayment :
TT/LCProduct Origin :
ChinaCustom Made :
YesShipping Port :
Shanghai, Nanjing, Ningbo, Guangzhou, Shenzhen, etc.Lead Time :
20 daysWarranty :
3 years
High Efficiency 97.9%
IP65 Flexible Design
UPS Backup <10ms
100% Unbalanced Load

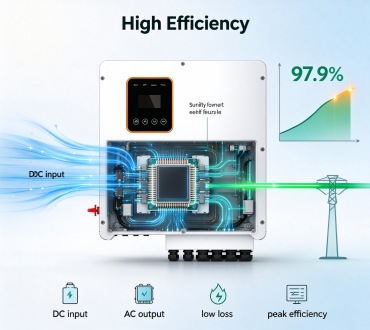

The GreenMore GM-HW series achieves up to 97.9% conversion efficiency with dual MPPT trackers, maximizing solar energy harvesting across varying irradiance conditions. Each MPPT operates independently with a wide voltage range of 180–850V, giving installers flexible PV string configurations.

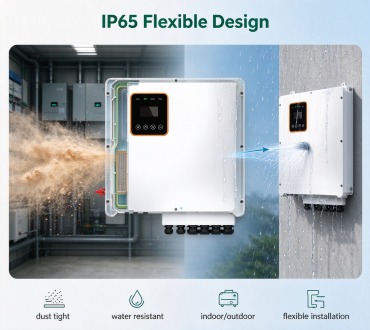

Built for harsh environments, the GreenMore three-phase hybrid inverter features an IP65 dust-tight and water-resistant enclosure with natural convection cooling. Noise stays below 45dB, and the operating range covers -25°C to +60°C — suitable for rooftops across Europe, the Middle East, Africa, and Southeast Asia.

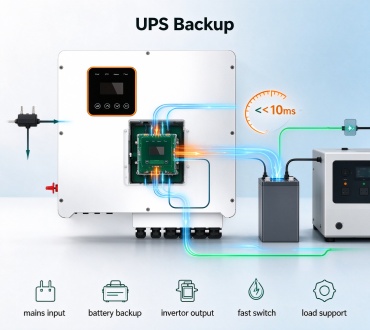

When grid power fails, the GreenMore GM-HW switches to backup mode in under 10 milliseconds. The EPS output delivers pure sine wave power with THDu <2%, safe for sensitive equipment including medical devices, servers, and smart home systems.

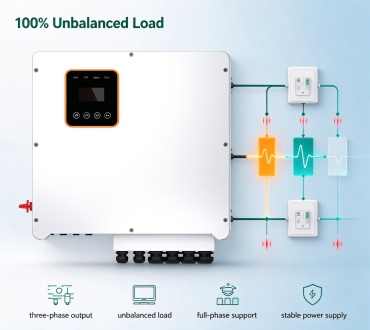

Unlike conventional three-phase inverters, the GreenMore hybrid inverter handles 100% unbalanced loads across all three phases — a critical advantage for real-world residential and commercial installations where phase loads are rarely equal.
Supports 48V/51.2V LiFePO₄ and lead-acid batteries via CAN/RS485 BMS communication. Compatible with major brands including GreenMore, BYD, and Pylontech. Self-adaptive charging strategy ensures optimal battery life across different chemistries.
Equipped with RS485, CAN, and WiFi interfaces, the GreenMore GM-HW connects seamlessly to EMS platforms for real-time monitoring, remote diagnostics, and automated scheduling. Installers can manage multiple sites from a single dashboard.

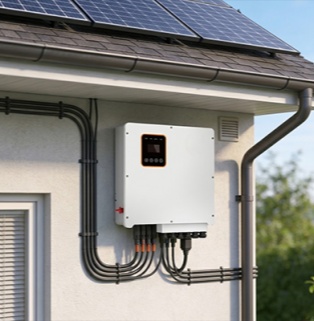

Homeowners install the GreenMore GM-HW hybrid inverter to maximize PV self-consumption, store excess solar energy in batteries, and draw from stored power during peak tariff hours. The 100% unbalanced load support ensures stable operation even when different phases carry unequal loads.
Shops, offices, and small factories benefit from the 6–15kW power range and peak-shaving capability. The inverter reduces grid dependence during business hours while providing seamless backup power during outages — protecting refrigeration, POS systems, and production equipment.
In remote regions with unreliable or no grid access, the GreenMore hybrid inverter operates in full off-grid mode, managing solar input, battery storage, and diesel generator backup as a unified system. The wide MPPT voltage range (180–850V) accommodates diverse PV array configurations.
For hospitals, data centers, and critical infrastructure, the sub-10ms backup switching time ensures zero interruption to essential loads. The EPS output delivers pure sine wave power, safe for sensitive medical and IT equipment.
Multi-inverter parallel operation enables scalable deployments for larger residential complexes and commercial sites. Installers can mix and match 6kW to 15kW units to meet specific project requirements, all managed through a unified monitoring platform via WiFi and RS485.
| Parameter | GM-HW6K | GM-HW8K | GM-HW10K | GM-HW12K | GM-HW15K |
|---|---|---|---|---|---|
| PV Input Data | |||||
| Max. PV Input Power (kW) | 9 | 12 | 15 | 18 | 22.5 |
| Max. PV Input Voltage (V) | 1000 | ||||
| Min. PV Input Voltage (V) | 125 | ||||
| Start-up Voltage (V) | 125 | ||||
| MPPT Voltage Range (V) | 180–850 | ||||
| MPPT Voltage Range @ Full-Load (V) | 250–850 | ||||
| Rated PV Input Voltage (V) | 600 | ||||
| No. of MPPT Trackers | 2 | ||||
| No. of Strings Per MPPT | 1/1 | 1/1 | 1/1 | 1/1 | 2/2 |
| Max. Input Current Per MPPT (A) | 18/18 | 18/18 | 18/18 | 18/18 | 20/20 |
| Max. Short-circuit Current Per MPPT (A) | 25/25 | 25/25 | 25/25 | 25/25 | 30/30 |
| Battery Input Data | |||||
| Battery Type | Lithium-ion / Lead-acid | ||||
| Max. Charge / Discharge Power (kW) | 6.6 | 8.8 | 11 | 13.2 | 16.5 |
| Battery Voltage Range (V) | 150–550 | ||||
| Battery Voltage Range @ Full-Load (V) | 180–550 | 230–550 | 285–550 | 340–550 | 425–550 |
| Max. Charging / Discharging Current (A) | 50/50 | ||||
| Rated Charge / Discharge Current (A) | 40/40 | ||||
| Battery Charging Strategy | Self-adaption to BMS | ||||
| BMS Communication | CAN | ||||
| AC Output Data (Grid Side) | |||||
| Rated Output Power (kW) | 6 | 8 | 10 | 12 | 15 |
| Max. Apparent Output Power (kVA) | 6.6 | 8.8 | 11 | 13.2 | 16.5 |
| Max. Apparent Input Power (kVA) | 13.2 | 17.6 | 22 | 26.4 | 33.3 |
| Rated Grid Voltage (V) | 220 / 380; 230 / 400 | ||||
| Grid Voltage Range (V) | 187–264.5 | ||||
| Grid Input Voltage (V) | 380; 400 | ||||
| Rated Grid Frequency (Hz) | 50/60 | ||||
| Grid Frequency Range (Hz) | 45–55 / 55–65 | ||||
| Rated Output Current (A) | 8.7 | 11.5 | 14.4 | 17.3 | 21.7 |
| Max. AC Output Current (A) | 9.5 | 12.7 | 15.9 | 19.1 | 23.8 |
| Power Factor | >0.99 (0.8 leading ~ 0.8 lagging) | ||||
| THDi | <3% | ||||
| Grid Type | 3L+N+PE | ||||
| AC Output Data (Backup) | |||||
| Rated Output Power (kW) | 6 | 8 | 10 | 12 | 15 |
| Max. Apparent Output Power (kVA) | 6.6 | 8.8 | 11.1 | 13.2 | 16.5 |
| Rated Output Voltage (V) | 220 / 380; 230 / 400 | ||||
| Rated Output Frequency (Hz) | 50/60 | ||||
| Rated Output Current (A) | 8.7 | 11.5 | 14.4 | 17.3 | 21.7 |
| Max. AC Output Current (A) | 9.5 | 12.7 | 15.9 | 19.1 | 23.8 |
| Peak Output Power | ≥110%, 10min; ≥120%, 1.25min; ≥150%, 20ms | ||||
| Back-up Switch Time (ms) | <10 | ||||
| THDu | <2% | ||||
| Protection | |||||
| Supported Protection | PV reverse polarity, Anti-islanding, Ground fault, Battery reverse, Leakage current, Insulation resistance detection, Backup output short circuit, AC under-voltage, AC output over-current, AC over-voltage | ||||
| Over Voltage Category | DC Type II / AC Type III | ||||
| Certifications & Standards | |||||
| Certificates | IEC 61000-6-1/-2/-3/-4, IEC 61000-3-11, IEC 61000-3-12; EN 62109-1, EN 62109-2; EN50549-1, EN50549-10; EN50438; G98/G99:2022; VDE-AR-N 4105:2018; CEI 0-21:2022; C10/11; NRS 097-2-1:2017; NTS V2.1:2021-07; UNE217002:2020; UNE217001:2020; NA/EEA-NE7 – CH 2020; OVE Directive R 25:2020; TOR Erzeuger Type A V1.2; TR3.3.1:2019; ANRE228; PPDS:2022; EIFS 2018:2 | ||||
| General Data | |||||
| Ingress Protection | IP65 | ||||
| Operating Temperature Range (°C) | -25 ~ +60 | ||||
| Cooling | Natural cooling | ||||
| Relative Humidity | 0–95% | ||||
| Operating Altitude (m) | 2000 | ||||
| Dimensions W×D×H (mm) | 566 × 593.5 × 219.5 | ||||
| Weight (kg) | 32 | ||||
| Topology (Solar / Battery) | Transformerless / Transformerless | ||||
| Noise Emission (dB) | <45 | ||||
| Display | Monochrome screen | ||||
| Communication | RS485, CAN, WiFi | ||||
Updated on October 1, 2026
Supports 48V/51.2V LiFePO₄ battery systems and integrates smoothly with major brands such as GreenMore, BYD, and Pylontech, ensuring flexible system design for installers.
Compatible with both single-phase and three-phase loads and operates reliably under 100% unbalanced load conditions, making it suitable for complex residential and commercial environments.

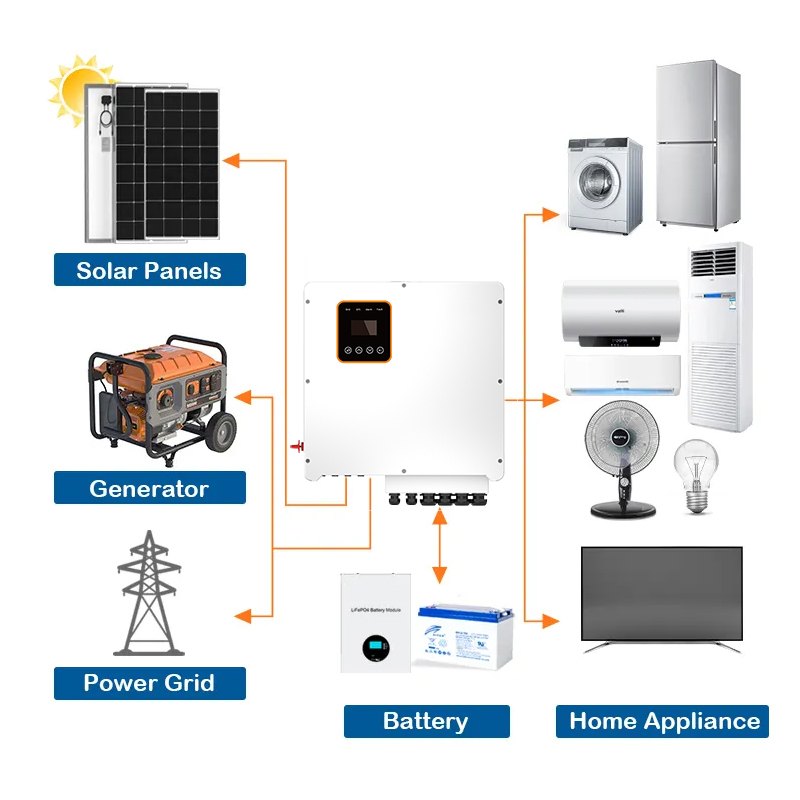

Combines solar input, battery charging/discharging, and grid interaction in one unit, enabling self-consumption, peak-shaving, and backup power modes.
Equipped with CAN, RS485, WiFi, and GPRS for seamless connection to EMS platforms, monitoring systems, and smart energy management solutions.
Works with monocrystalline, bifacial, and half-cell PV modules, supported by a wide MPPT voltage range for flexible system configuration.
Supports multi-inverter parallel setups, ideal for villas, large homes, small businesses, and expandable commercial energy-storage projects.
The GreenMore GM-HW series features built-in safeguards including PV reverse polarity, anti-islanding, ground fault, battery reverse, leakage current, and insulation resistance detection. AC output protection covers short circuit, under-voltage, and over-current conditions for stable operation in demanding environments.
CAN/RS485 BMS communication enables real-time monitoring of battery status, temperature, and charge levels. Self-adaptive charging strategy ensures safe and optimized charging cycles for both LiFePO₄ and lead-acid battery systems.
Dust-proof and water-resistant enclosure suitable for outdoor installation in harsh climates. Natural cooling design with noise below 45dB. Operating temperature range of -25°C to +60°C covers extreme environments across Europe, the Middle East, Africa, and Southeast Asia.
Trusted Support & International Compliance
Every GreenMore GM-HW hybrid inverter carries a 3-year warranty and is backed by professional technical support. Certified to IEC/EN 62109 and IEC 61000 EMC standards, with grid-connection compliance including VDE-AR-N 4105 (Germany), CEI 0-21 (Italy), G98/G99 (UK), EN50549, and NRS 097 (South Africa). Since 2017, GreenMore has served installers and integrators across four continents with reliable, certified solar solutions.

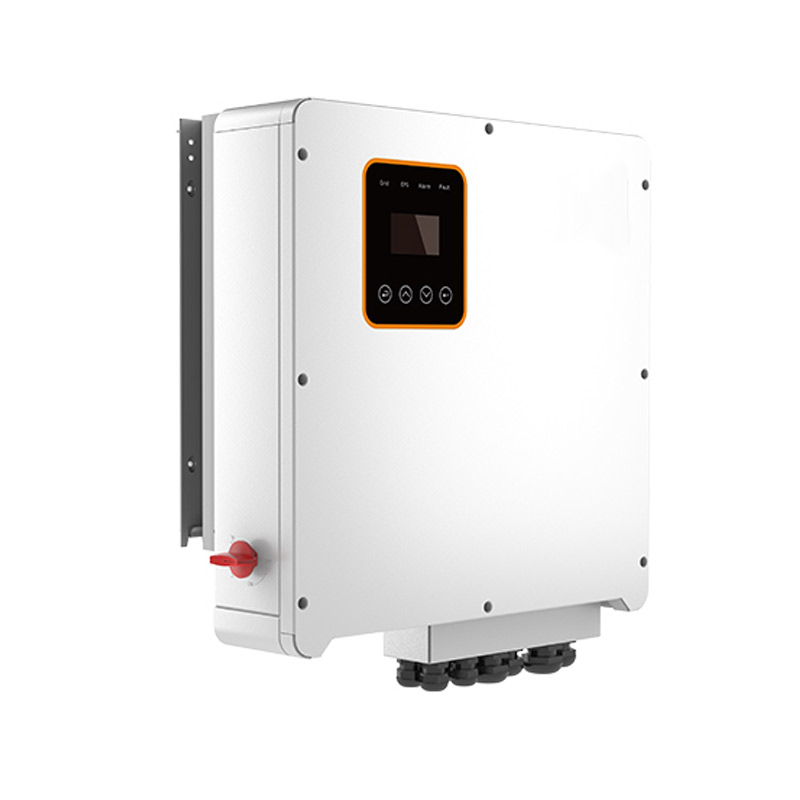

Main inverter body in IP65 enclosure for indoor/outdoor installation.
Wall-mount bracket, bolts, and accessories for secure installation.
CAN/RS485 cables for battery and EMS connection.

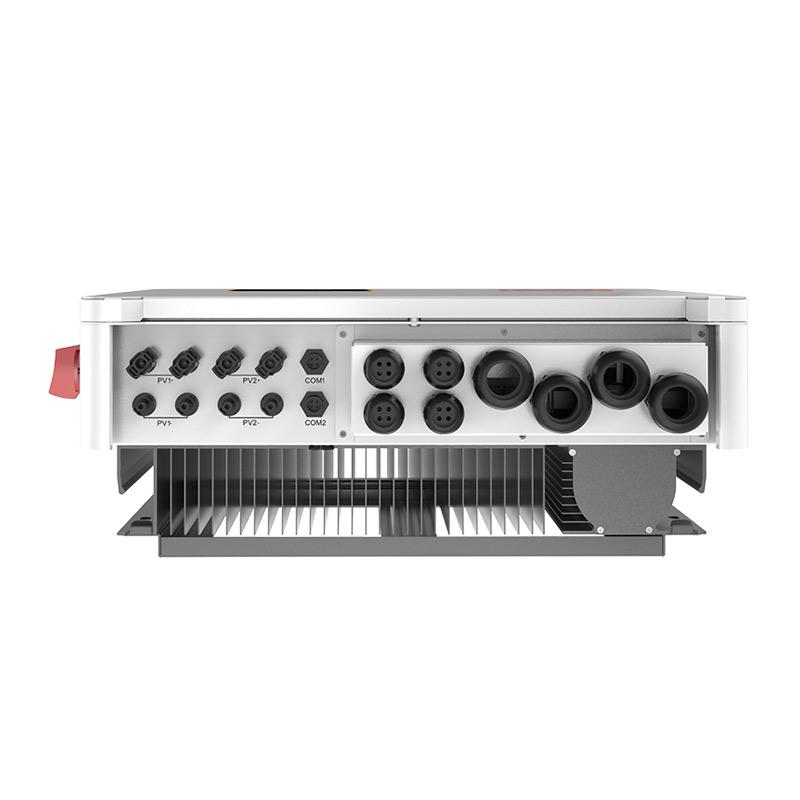

Standardized MC4-type PV connectors and battery terminals.
Technical documentation for wiring, configuration, and commissioning.
Product warranty and after-sales service details.
A: The GreenMore GM-HW series offers five models: 6kW, 8kW, 10kW, 12kW, and 15kW. All share the same IP65 enclosure and communication interfaces, allowing installers to scale projects without changing system architecture.
A: Yes. The inverter supports both single-phase and three-phase loads and operates reliably under 100% unbalanced load conditions. This makes it ideal for residential installations where load distribution varies across phases.
A: Yes. It supports 48V/51.2V LiFePO₄ batteries and works with major brands including GreenMore, BYD, and Pylontech via CAN/RS485 BMS communication. Lead-acid batteries are also supported.
A: Yes. The GreenMore hybrid inverter provides EPS backup output with a switching time of less than 10ms, ensuring uninterrupted power for essential loads during grid outages.
A: Yes. With an IP65 rating and natural cooling design, it can be installed outdoors in harsh climates across Europe, the Middle East, Africa, and Southeast Asia, operating in temperatures from -25°C to +60°C.
A: All GreenMore hybrid inverters come with a 3-year warranty and technical support from a team with industry expertise since 2017, serving installers and integrators across four continents with reliable, certified solar solutions.
