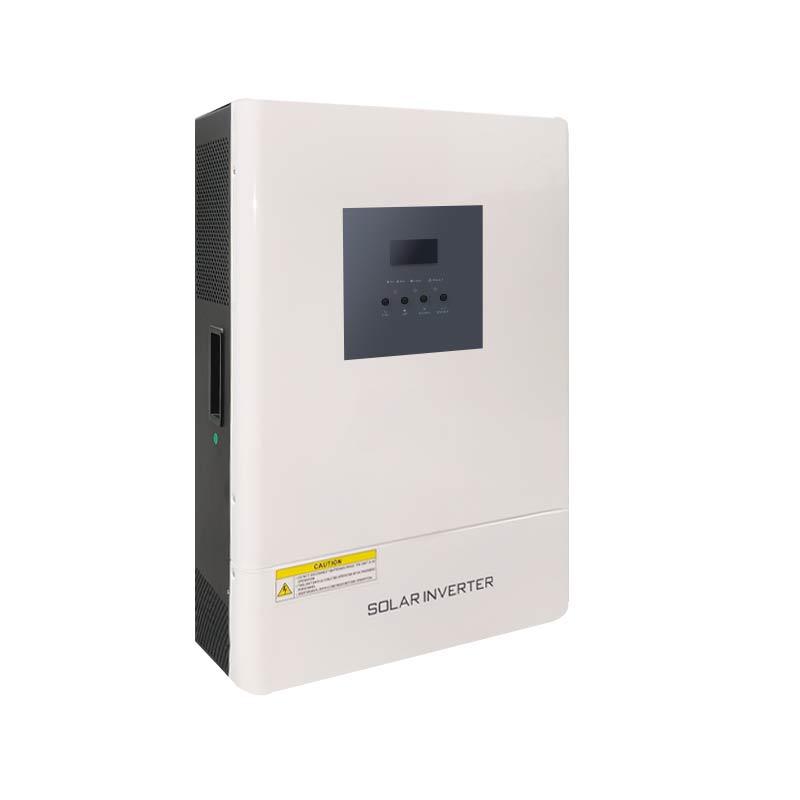

Low Frequency Solar Inverter

This low frequency solar inverter is designed for off-grid/microgrid photovoltaic power generation systems. It uses low-frequency voltage conversion technology and combines intelligent MPPT algorithm to achieve efficient power conversion and stable output. It is suitable for power supply in remote areas, household energy storage, industrial backup power supply and other scenarios.

Item No :
GM-DP064
Payment :
TT/LC
Product Origin :
China
Custom Made :
Yes
Lead Time :
20 days

Inquiry now

Product Details

Features

Efficient Power Generation

Smart Protection

Safe and Stable

Easy Installation

Pure sine wave output
High power generation efficiency, MPPT maximum efficiency ＞98%
Intelligent charging to optimize battery performance
When the mains power is restored, the inverter will restart intelligently
This low frequency solar inverter can be equipped with an optional 120A MPPT controller
Adjustable charging current
Built-in toroidal transformer, overload and overvoltage protection function
Support RS485/Modbus communication protocol, remotely monitor the operation status, and realize fault warning and parameter configuration.
Suitable for various batteries

Parameter

Model	GM-DP048	GM-DP064	GM-DP080	GM-DP0100
Battery Type	Lithium/lead-acid/GEL
Inverter output
Rated Power(W)	4800	6400	8000	10000
Waveform	Pure sine wave/ same as input(bypass mode)
Nominal Output Voltage RMS	220V/230V/240VAC(+/-10% RMS)
Output Frequency(Hz)	50Hz/60Hz +/-0.3
Inverter Efficiency(Peak)	85%	85%	88%	88%
Transfer Time	10ms typical，20ms Max
Solar Charger
Maximum PV Charge Current(A)	120
Maximum PV Array Power(W)	6100
Number of independent MPP trackers/ strings per MPP tracker	1/1
MPPT operating voltage range(V)	60-145
Maximum PV Array Open Circuit Voltage(V)	150
Maximum Efficiency	98%
AC Input
Voltage(V)	230
Selectable Voltage Range(V)	154~272VAC(for appliances);184~272VAC(for UPS)
Frequency Range(Hz)	50Hz/60Hz (Auto sensing)
Maximum Charge Current(A)	29	38.8	48	60
Protect
Input protection	Mains input overcurrent switch protection
Output protection	Overload protection, short circuit protection, reverse polarity protection, etc.
General Parameters
Relative Humidity	0~95% non-condensing
Operating Temperature (°C)	0~+60
Altitude (m)	3000
Reference Size (WDH)(mm)	512320136
Reference Weight（Kg）	38	42	51	58
