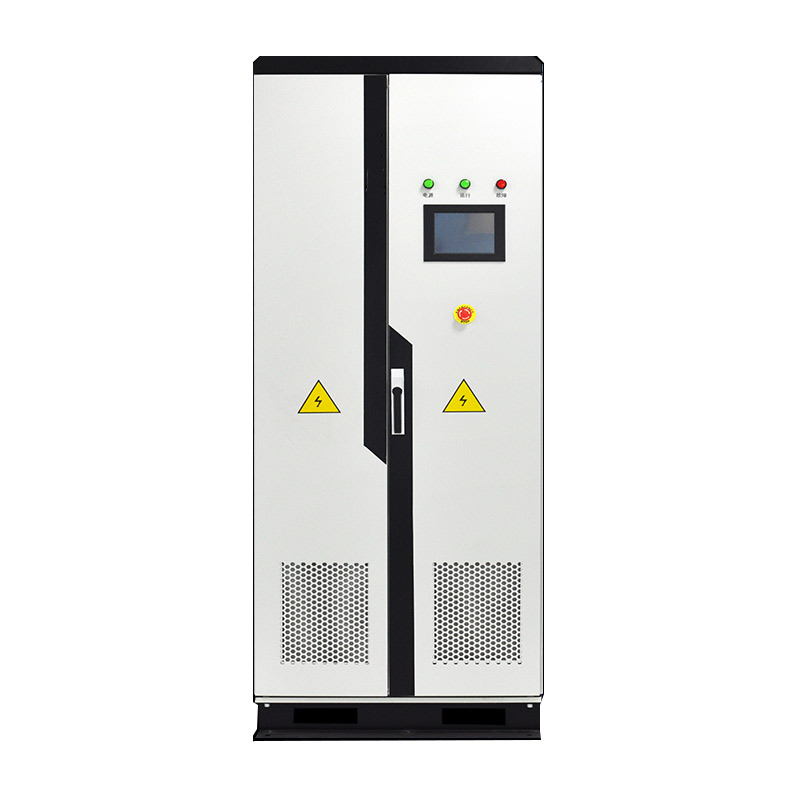

The isolated Hybrid Power Conversion System is an advanced device designed for large-scale industrial and commercial users to meet the needs of applications such as peak shaving and valley filling and battery backup. The product adopts full digital control technology and integrates cutting-edge power electronics technology, with a maximum efficiency of 97.5%. Its multi-machine parallel function flexibly expands the power range, covering 30KW to 3MW, providing users with efficient and reliable energy storage solutions.
Item No :
GM-LEI50KPayment :
TT/LCProduct Origin :
ChinaCustom Made :
YesLead Time :
20 daysWarranty :
5 yearsPower Conversion System
(with isolation transormer)
Safe and Reliable
Flexible Configuration
Intelligent and Efficient
Parameter
| Model | GM--LEI50K | GM--LEI60K | GM--LEI100K |
| DC Input (PV) | |||
| Maximum Input Voltage (V) | 850 | ||
| MPPT Voltage Range (V) | 600-850 | ||
| MPPT Number | 3 | ||
| Input Power Per Channel | 20 | 20 | 30 |
| Battery | |||
| Supported Battery Types | Lithium battery, lead-carbon battery, lead-acid battery, etc. | ||
| Operating Voltage Range（V） | 320-600 | 320-600 | 400-600 |
| AC Output (Grid-Connected) | |||
| Rated Output Power（KW） | 50 | 60 | 100 |
| Maximum Output Power (KVA) | 55 | 66 | 110 |
| Rated Grid Voltage (V) | 3/N/PE，230/400 | ||
| Rated Grid Frequency (Hz) | 50/60 | ||
| Total Current Waveform Distortion Rate | ＜3% rated power | ||
| AC Output (Off-Grid) | |||
| Rated Output Power（KW） | 50 | 60 | 100 |
| Maximum Output Power (KVA) | 55 | 66 | 110 |
| Overload Capacity | 110% for ten minutes, 120% for one minute | ||
| Rated Output Voltage (V) | 3/N/PE，230/400 | ||
| Rated Frequency (Hz) | 50/60 | ||
| AC Voltage Distortion Rate | ＜3% linear load | ||
| With Unbalanced Load Capacity | 100% | ||
| General Parameters | |||
| Maximum Efficiency | 93.0% | 93.0% | 94.0% |
| Protection Function | Short circuit protection, reverse polarity protection, surge protection | ||
| Isolation Transformer | Yes | ||
| Protection Level | IP20 | ||
| Cooling Method | Temperature controlled forced air cooling | ||
| Relative Humidity | 0~95% non-condensing | ||
| Operating Temperature (°C) | -30~+55 | ||
| Altitude (m) | 3000 | ||
| Standby Power Consumption (W) | ＜50 | ||
| Display | Touch LCD | ||
| Dispatch Communication Method | Ethernet, RS485 | ||
| BMS Communication Method | RS485、CAN | ||
| Communication Protocol | Modbus-RTU/TCP | ||
| Reference Weight（Kg） | 650 | 800 | 900 |
| Reference Size (W*D*H)(mm) | 950*700*1953 | 950*700*1953 | 1200*800*2050 |
