Solar Roof Tiles Waterproof | Photovoltaic Roof Tiles for Residential & Commercial Roofing
The Waterproof Solar Roof Tile is a high‑performance BIPV roofing solution delivering 109W–115W per tile, engineered for modern residential and commercial buildings. Each tile integrates monocrystalline silicon cells with a durable double‑glass structure and waterproof frame, ensuring stable power generation and long‑term outdoor reliability.
The stacked modular design enables fast installation, secure interlocking, and seamless architectural integration. Certified to EN 14782 and CE, with Class C fire rating and 25‑year linear power warranty, this tile is ideal for BIPV projects, distributed solar systems, and energy‑efficient building upgrades. Trusted by developers, EPC contractors, and distributors across Europe, Middle East, Americas, and Africa.
Item No :
GM-LDM115Payment :
TT/LCProduct Origin :
ChinaCustom Made :
YesShipping Port :
Shanghai, Nanjing, Ningbo, Guangzhou, Shenzhen, etc.Lead Time :
15 daysWarranty :
25 years

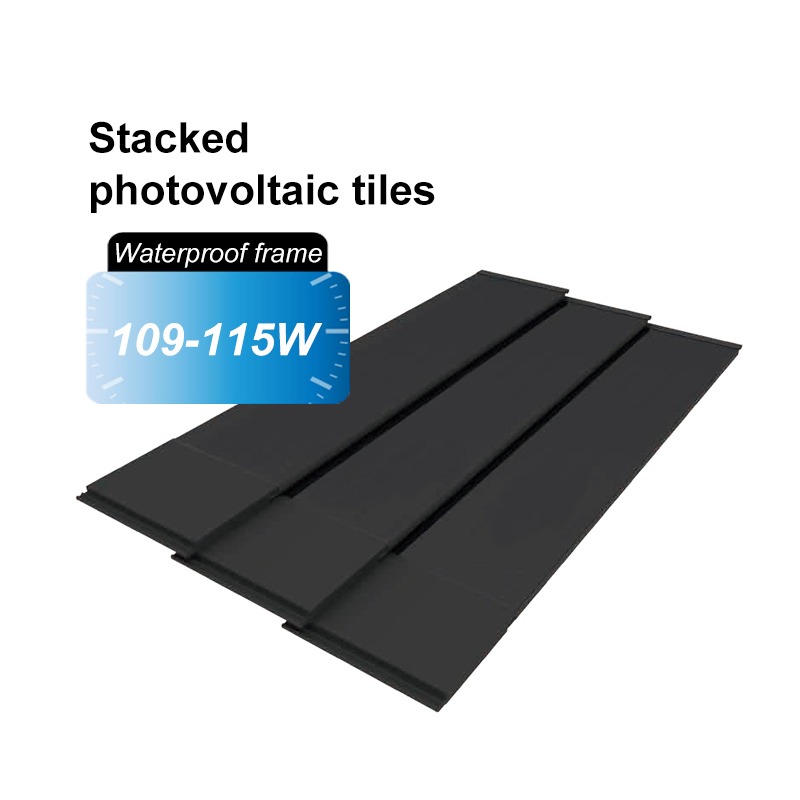

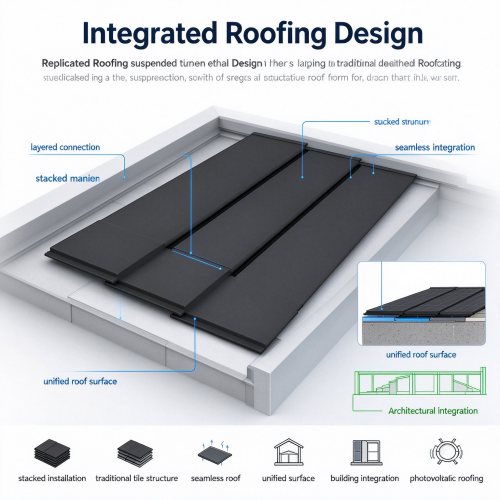

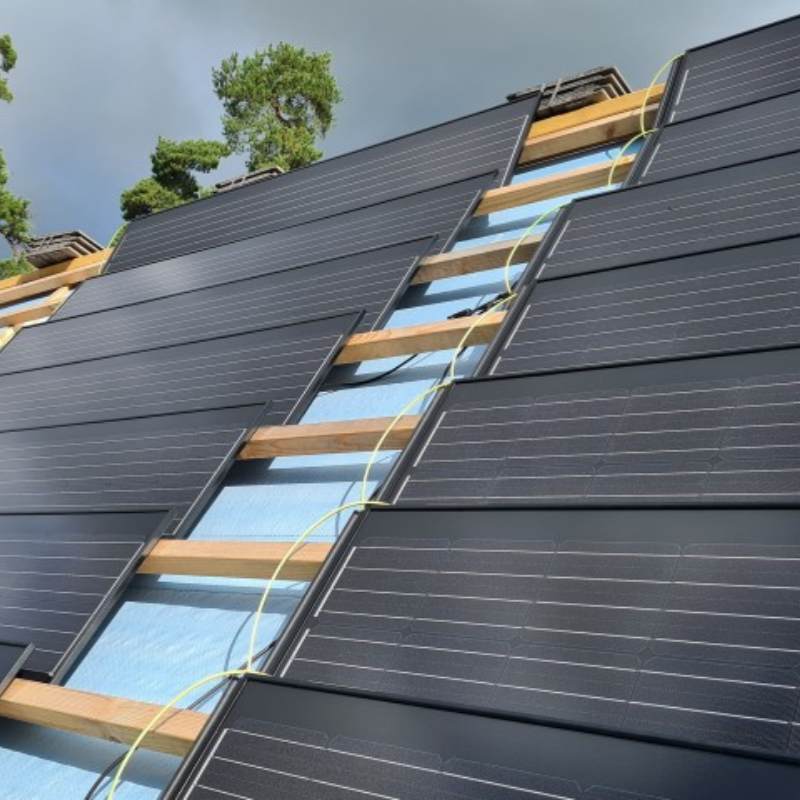

The photovoltaic tiles are installed in a stacked manner, replicating the traditional suspended tile roof structure, achieving seamless architectural integration while maintaining a unified roof surface.

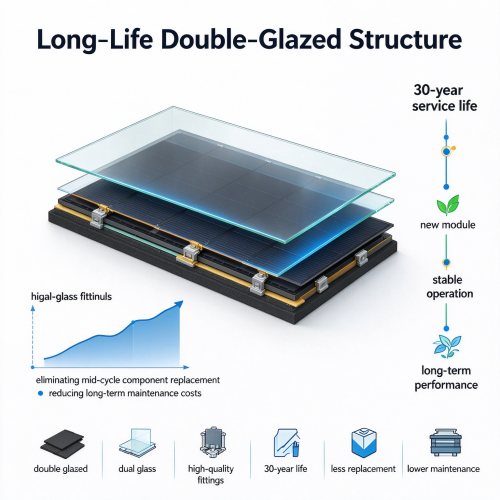

A dual‑glass module combined with high‑quality fittings ensures a 30‑year service life, eliminating mid‑cycle component replacement and reducing long‑term maintenance costs.

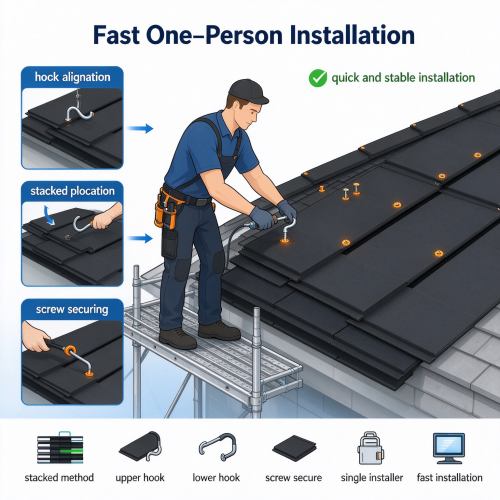

The stacked installation method, with upper and lower hooks connected and secured with screws, enables quick and stable installation, which can be completed by a single installer.
Ideal for new homes and roof‑replacement projects requiring clean aesthetics, long‑life roofing materials, and integrated solar generation.
Suitable for factories, warehouses, and office buildings, meeting key requirements such as rapid installation, slope drainage, and durability.
Meets the needs of green building renovation, energy‑saving roof upgrades, and projects that combine rooftops with photovoltaic power generation.
Supports distributed photovoltaic systems, meeting the requirements for modular installation, low maintenance, and long‑term reliable power generation.
Suitable for urban rooftops, meeting high requirements for performance and appearance, such as waterproofing, drainage, and building integration.
Electrical Parameters (STC)
| Parameter | LDM109 | LDM112 | LDM115 |
| Maximum Power (Pmax) | 109W | 112W | 115W |
| Open Circuit Voltage (Voc) | 8.25V | 8.30V | 8.40V |
| Short Circuit Current (Isc) | 18.21A | 18.30A | 18.39A |
| Maximum Power Voltage (Vmpp) | 6.40V | 6.55V | 6.69V |
| Maximum Power Current (Impp) | 17.03A | 17.11A | 17.19A |
| Fill Factor (FF%) | 72.55 | 73.74 | 74.45 |
STC: Irradiance 1000W/m², cell temperature 25°C, atmospheric mass AM1.5.
Mechanical Parameters
| Cell | 210mm monocrystal |
| Product Size | 1817mm × 420mm × 29mm |
| Module Size | 1732mm × 418.5mm × 5mm |
| Weight | 9.6kg |
| Structure | Double‑glass |
| Frame | Black aluminum |
| Cable | 700mm positive & 700mm negative |
| Connector | PV‑SY02, IP68 |
| Junction Box & Diode | IP67, 1000VDC, Two diodes |
Temperature & Application Environment
| NMOT | 44±2℃ |
| Temperature Coefficient of Voc (β) | -0.25%/℃ |
| Temperature Coefficient of Isc (α) | 0.04%/℃ |
| Temperature Coefficient of Pmax | -0.34%/℃ |
| Operating Temperature Range | -40℃ to +85℃ |
| Maximum System Voltage | 1000VDC |
| Maximum Fuse Current Rating | 30A |
| Limited Reverse Current | 30A |
Note: Product dimensions and parameters are subject to the actual delivered product. Updated on October 1, 2026.
 |
 |
 |
 |
 |
 |

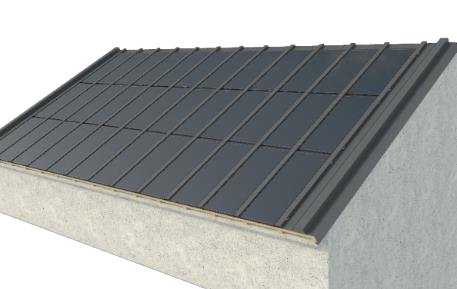

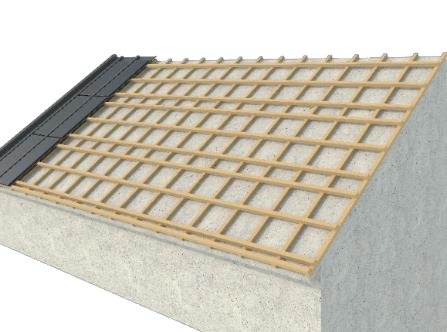

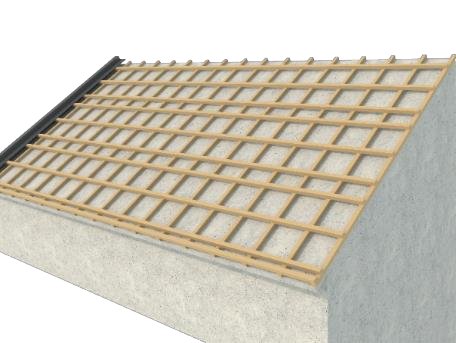

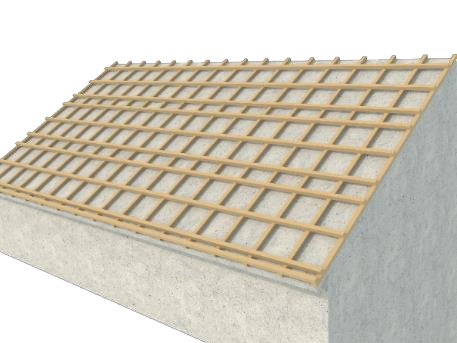

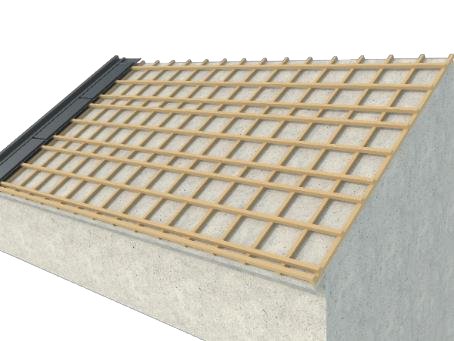

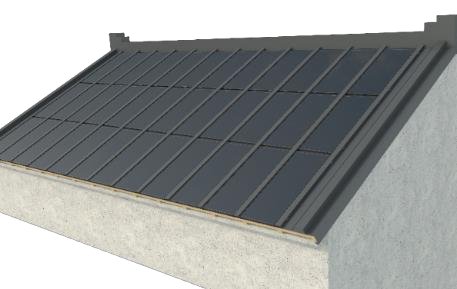

| Tile strip frame erection | Bottom cement tiles | Solar tile installation | Continued PV tile laying | Ridge tile installation | Side finishing |

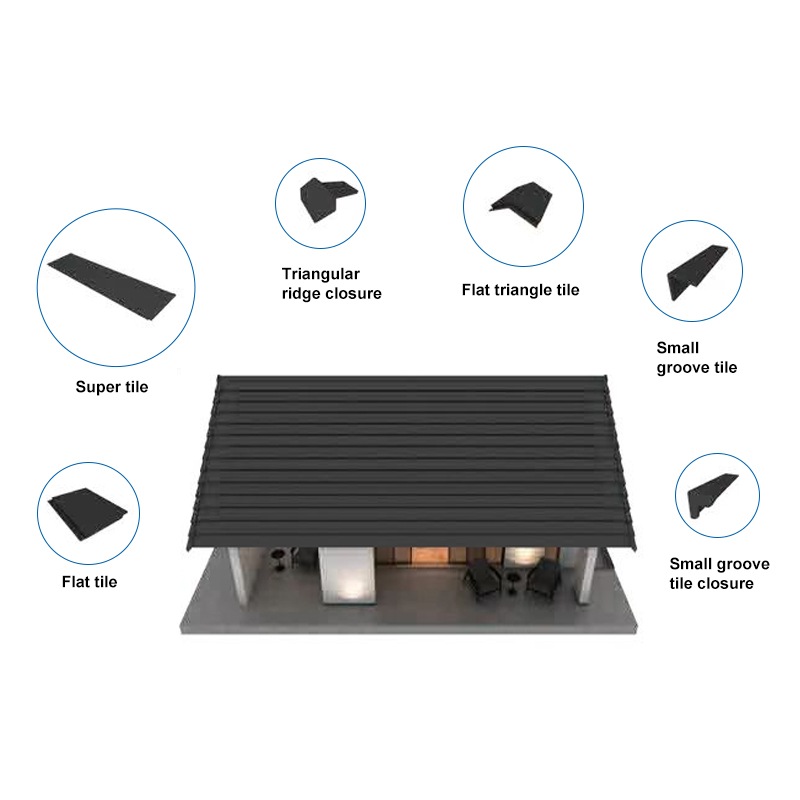

Compatible with standard aluminum alloy mounting rails, windproof hooks, and interlocking profiles for secure rooftop installation.
Supports mainstream inverter brands for grid‑tied and off‑grid configurations across residential and commercial applications.
Seamlessly pairs with GreenMore residential and C&I energy storage solutions for maximum self‑consumption and backup power.
Integrates with BMS/EMS and cloud‑based monitoring for real‑time performance tracking and energy optimization.
Certified to EN 14782 (structural performance), EN 1090‑1 (execution of steel structures), and CE — meeting European building regulations and international safety requirements.
Certified flame spread performance for commercial, industrial, and residential buildings with strict fire safety requirements.
Since 2017 GreenMore has focused on reliable BIPV solutions; every solar tile carries a 25‑year linear power warranty backed by factory testing.
Trusted OEM Support
Full OEM/ODM services including custom color matching, logo printing, bespoke packaging, and product specifications tailored to target markets. Explore our full solar tile range.
Each stacked photovoltaic tile delivers 109–115W, depending on cell efficiency and installation conditions. This power range supports residential and commercial BIPV roofing systems, ensuring stable daily energy generation.

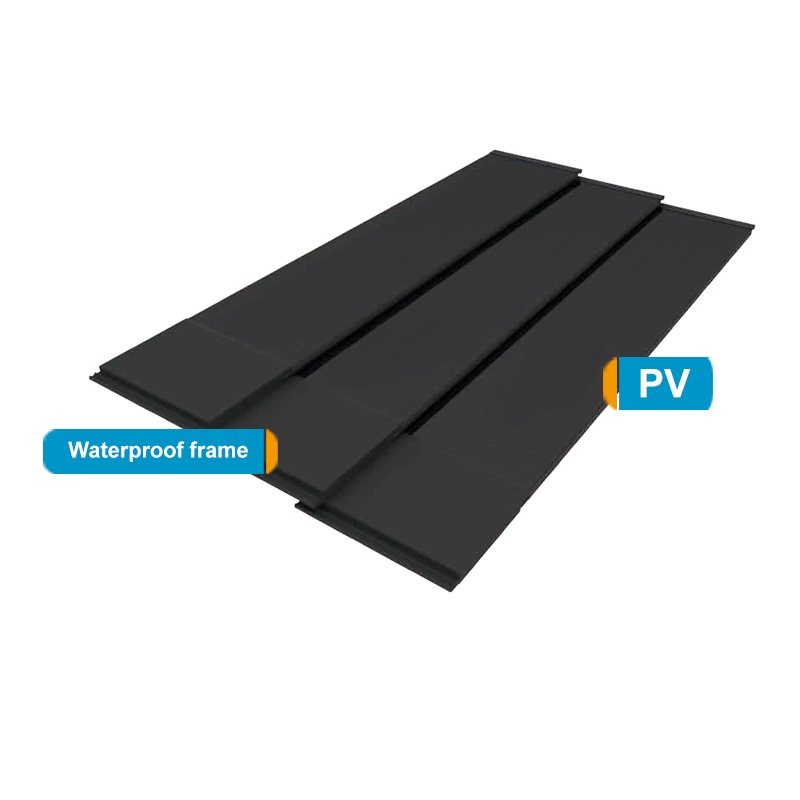

The tile uses a durable waterproof frame and slope‑drainage design to prevent water accumulation, dust buildup, and shading. This structure enhances long‑term outdoor reliability and maintains consistent power generation in various weather conditions.
Yes. The overlapping block‑style structure connects through upper and lower hooks and is secured with screws. This design allows fast, stable installation that can be completed by a single installer, reducing labor requirements.
The double‑glazed module and high‑quality fittings ensure a 30‑year service life, matching the lifespan of standard roofing materials. This eliminates mid‑cycle component replacement and reduces long‑term maintenance costs.
The tiles are compatible with string inverters, microinverters, and DC optimizers, offering flexible system configuration for residential, commercial, and distributed solar energy systems.
EN 14782 (structural performance), EN 1090‑1 (execution of steel structures), and CE. These certifications ensure compliance with European building regulations and international safety requirements for BIPV roofing applications.
GreenMore provides a 25‑year linear power warranty on all BIPV solar tiles, ensuring long‑term energy generation performance and structural durability throughout the product lifecycle.
Yes. GreenMore provides full OEM/ODM services for BIPV solar tiles, including custom color matching, logo printing, bespoke packaging, and product specifications tailored to target markets across Europe, Middle East, Americas, and Africa.
