GreenMore's tiled type photovoltaic tiles integrate solar power generation directly into the roofing surface, offering a clean, flat design that aligns with modern architectural aesthetics. Each tile delivers 104–110W of output using monocrystalline double‑glass frameless construction, certified to EN 14782 and CE standards with a Class C fire rating.
The large‑format design — up to 4.5× the size of traditional cement tiles — supports simplified installation and reduces construction time by approximately 30%. Engineered to withstand 5400Pa front‑side load and 2400Pa back‑side load, the tiles maintain stable performance under strong winds, heavy snow, and harsh weather. With intelligent factory production and 24‑hour quality monitoring, each tile is built for a 30‑year service life without mid‑cycle component replacement. Ideal for BIPV projects, distributed solar systems, and architectural energy‑saving upgrades.
Item No :
GM-LDM110Payment :
TT/LCProduct Origin :
ChinaCustom Made :
YesShipping Port :
Shanghai, Nanjing, Ningbo, Guangzhou, Shenzhen, etc.Lead Time :
15 daysWarranty :
25 yearsAlso known as solar shingles, our tiled photovoltaic tiles replace ordinary roof coverings and turn the roof itself into a power-generating surface. Each flat, frameless tile installs flush, keeping the roofline clean while producing up to 110W per unit. The terms solar shingles and solar roof tiles refer to the same product family — “shingle” is commonly used for this flat, slate-like format.

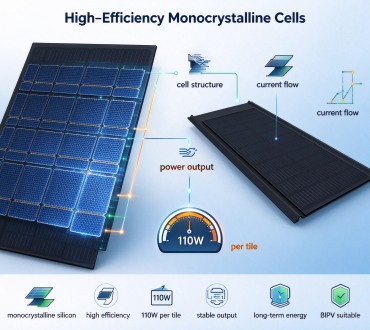

Premium monocrystalline silicon cells deliver up to 110W per tile and superior long‑term energy yield for BIPV projects.

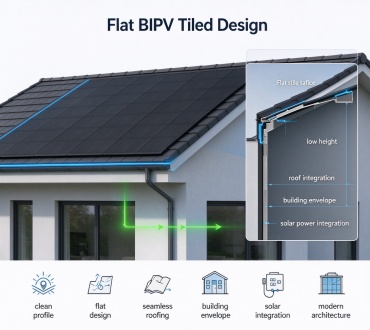

Clean, flat tile profile blends seamlessly with modern roofing, integrating solar power directly into the building envelope.

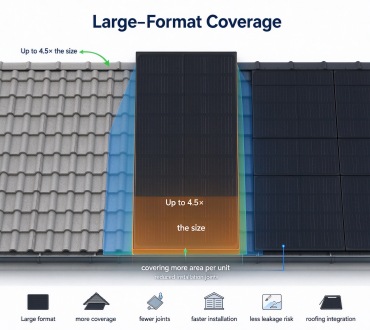

Up to 4.5× the size of traditional cement tiles, covering more area per unit and reducing installation joints.

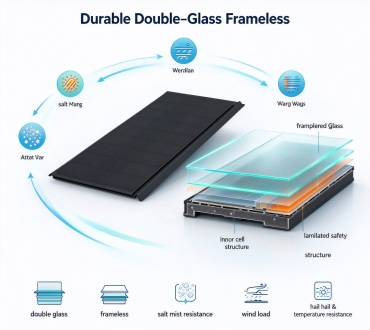

PV tempered glass on both sides with frameless construction resists UV, salt mist, wind load, hail, and extreme temperature variations.

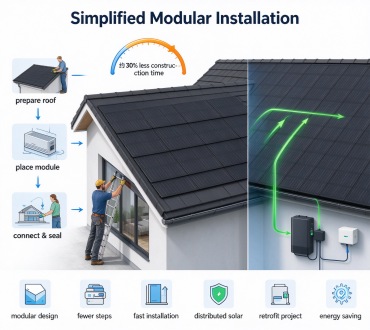

Reduces construction time by approximately 30%, supporting distributed solar systems and energy‑saving retrofit projects.
The flat tiled profile mounts flush to the roof surface, eliminating the need for raised mounting racks and preserving the building's clean architectural lines.
Engineered for 5400Pa front‑side load and 2400Pa back‑side load, maintaining stable performance under strong winds, heavy snow, and harsh environmental conditions.
24‑hour quality monitoring during lamination and assembly, ensuring consistent cell performance, glass adhesion, and junction box sealing across every production batch.
| Category | GreenMore Solar Shingles | Traditional Roof Tiles |
| Core Function | Acts as the roof and generates clean electricity | Provides weatherproofing only; no power output |
| Building Integration (BIPV) | Replaces roof tiles directly; flush flat profile | Standard roof covering; needs a separate solar setup for power |
| Construction Efficiency | Roofing and solar in one pass; about 30% faster overall | Roofing only; adding panels later means extra labour and roof penetrations |
| Weather & Load Rating | 5400Pa front / 2400Pa back; double‑glass frameless | Varies by tile type; not rated as a PV module |
| Aesthetics | Uniform flat finish; blends with modern architecture | Conventional tile look; rooftop panels appear added‑on |
| Service Life | Designed for 30 years; 25‑year power warranty | Commonly 20–30 years depending on the material |
| Lifecycle Cost | One product covers roofing + generation; lower combined cost | Roof plus a separate solar system; higher combined cost |
| Best For | New builds, re‑roofing and BIPV energy‑saving upgrades | Conventional roofing with no on‑site generation |
| Parameter | GW30 (110W) | GW25 (104W) |
| Model | GW30 | GW25 |
| Max. Power (Pmax) | 110W | 104W |
| Open Circuit Voltage (Voc) | 41.9V | 39.75V |
| Short Circuit Current (Isc) | 3.4A | 3.35A |
| Voltage at Pmax (Vmp) | 35.5V | 33.75V |
| Current at Pmax (Imp) | 3.1A | 3.09A |
| Module Dimensions (L*W*H) | 1060*650*35mm | 1060*650*35mm |
| Module Weight | 8.9kg | 8.9kg |
| Front Cover | PV Tempered Glass | PV Tempered Glass |
| Backsheet | PV Tempered Glass | PV Tempered Glass |
| Frame | Aluminum Alloy | Aluminum Alloy |
| Junction Box | IP68 / MC4 | IP68 / MC4 |
| Color | Gray, Green, Red, Black | Gray, Green, Red, Black |
| Max. System Voltage | 1000V DC | 1000V DC |
| Max. Series Fuse Rating | 15A | 15A |
| Front Side Static Load | 5400Pa | 5400Pa |
| Back Side Static Load | 2400Pa | 2400Pa |
| NOCT | 45±2℃ | 45±2℃ |
| Fire Resistance | Class C | Class C |
| Module Efficiency (%) | 20.09 | 18.99 |
| Temperature Coefficient of Pmax | -0.290%/℃ | -0.290%/℃ |
Note: Product dimensions and parameters are subject to the actual delivered product. Updated on October 1, 2026.
Suitable for flat roof applications and energy‑saving retrofit projects, the large‑format tile covers more area per unit, reducing joints and shortening construction time by approximately 30%.
Compatible with GreenMore BIPV systems, hybrid inverters, and energy storage solutions—supporting distributed solar deployment across commercial, industrial, and residential buildings.

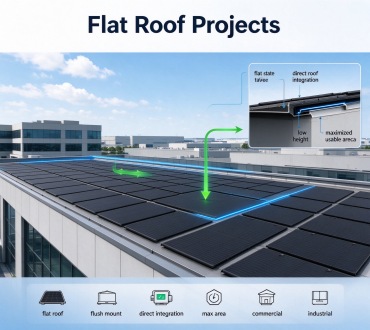

Flush‑mount flat tile profile integrates directly into commercial and industrial flat roofs, maximizing usable roof area.
High‑end commercial properties seeking BIPV integration and clean architectural aesthetics with reliable solar generation.

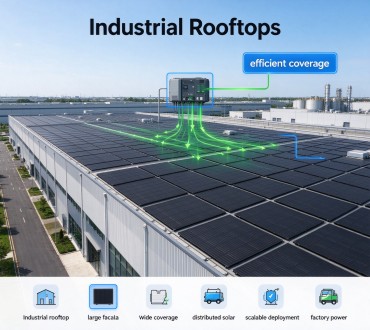

Large‑format tiles cover expansive factory rooftops efficiently, supporting distributed solar deployment at scale.
Reduces long‑term energy costs for warehouses and distribution hubs while meeting ESG targets for sustainable logistics.
Replaces traditional roofing while upgrading residential buildings to solar generation—combining roofing and power in one pass.
EN 14782 and CE certified—meeting international standards for metal sheet roofing, structural performance, and product safety.
Certified flame spread performance, suitable for commercial, industrial, and public buildings with strict fire safety requirements.
24‑hour quality monitoring during production; each tile is factory‑tested before shipment for consistent performance.
Trusted OEM Support
Custom system design, layout simulation, branding, and wholesale distribution support for multi-region B2B partners, project contractors, and regional distributors. Explore our full solar tile range.
Each tile measures 1060*650mm — approximately 4.5× the size of traditional cement tiles — covering more area per unit and reducing joints, which shortens installation time by approximately 30%.
Rated for 5400Pa front‑side load and 2400Pa back‑side load, the double‑glass frameless structure maintains stable performance under strong winds, heavy snow, and harsh environmental conditions.
Designed for a 30‑year service life without mid‑cycle component replacement, backed by intelligent factory production and 24‑hour quality monitoring.
EN 14782 and CE certified for building material safety, plus Class C fire resistance — meeting international standards for commercial and industrial buildings.
Yes. The flat tiled profile mounts flush to existing roof structures, making it ideal for distributed solar systems and architectural energy‑saving upgrades on commercial, industrial, and residential buildings.
Gray, Green, Red, and Black options are available to match different architectural styles. Custom colors can be discussed for OEM orders.
In practice, yes — both names describe photovoltaic modules built to look and install like roofing. “Solar shingles” usually refers to the flat, slate‑like format on this page, while “solar roof tiles” can also include curved or profiled styles. Function, certifications and installation are the same.
