Stacked Energy Storage Battery

Long-Life LFP Cells

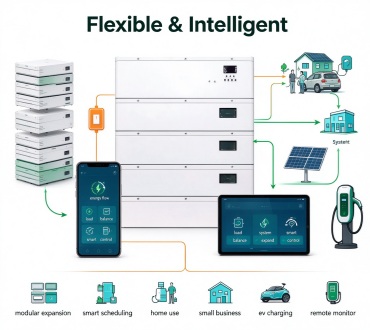

Flexible & Intelligent

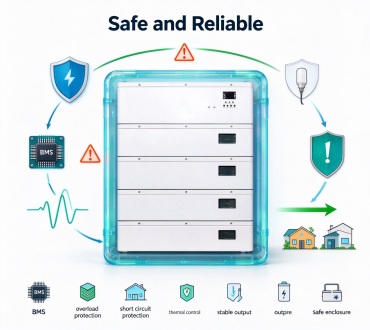

Safe and Reliable

Economical & Practical

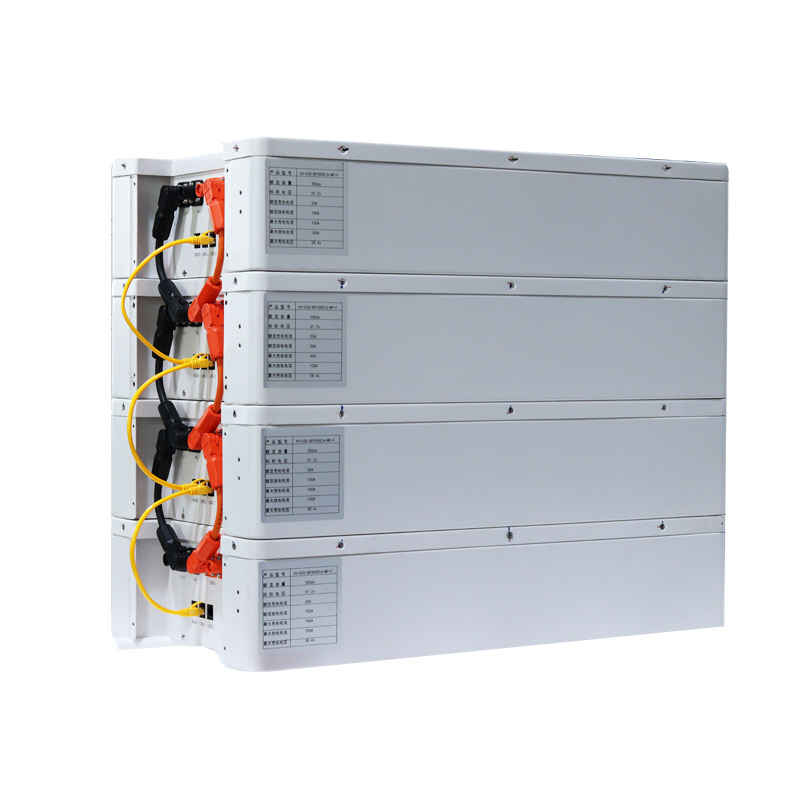

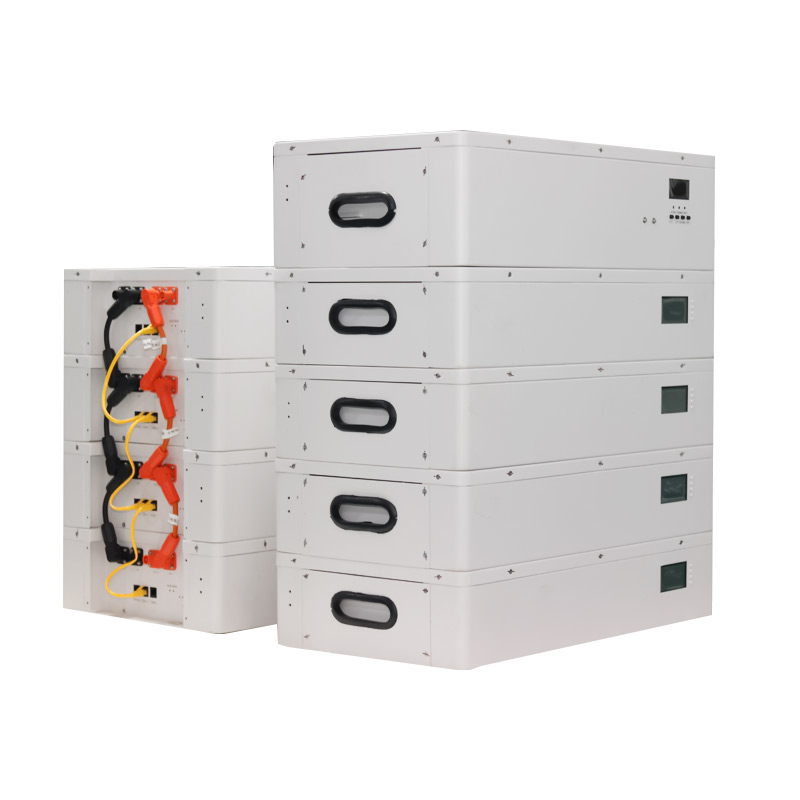

Modular Stacking Architecture

Start with one 5.12kWh module and stack up to four units for 20.48kWh. The pay-as-you-grow model cuts upfront costs, and plug-and-play connectors make adding modules quick and tool-free.

6000+ Cycle LiFePO₄ Cells

High-consistency Grade-A lithium iron phosphate cells deliver 6,000+ cycles at 80% DOD and a design life beyond 10 years, with chemistry that inherently resists thermal runaway.

IP54 Indoor/Outdoor Rating

A fully sealed enclosure guards against dust ingress and water jets. Deploy in garages, utility rooms and basements, or on patios and outdoor walls — natural cooling needs no extra ventilation.

Multi-Level BMS Protection

Over-current, over/under-voltage, over-temperature, short-circuit and leakage protection at cell, module and system level, with automatic fault isolation to prevent cascading failures.

Remote Monitoring & OTA

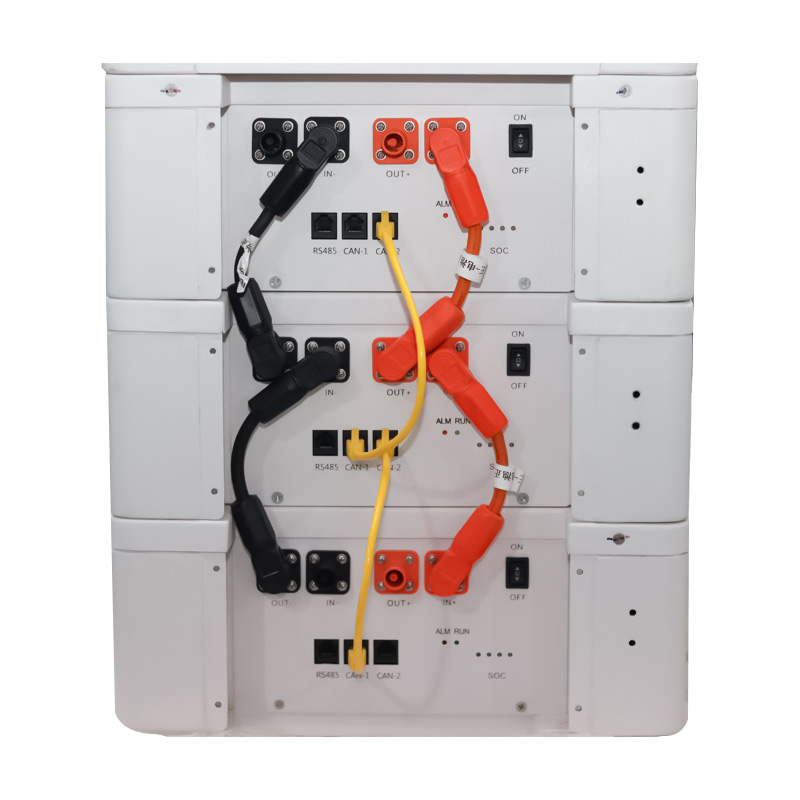

CAN/RS485/RS232 interfaces enable centralized monitoring, real-time SOC tracking, remote diagnostics and over-the-air firmware upgrades across every module in the stack.

Wide Inverter Compatibility

Works out of the box with Growatt, Deye, Huawei, SMA, Victron, GoodWe, Solis and other major brands. Custom protocol integration is available for specific inverter models.

Solar Self-Consumption for Homes

Stores surplus daytime solar energy for night-time use. Start with one 5.12kWh module and add more as rooftop PV expands — 6,000+ cycles support over 10 years of reliable daily cycling and lower grid dependence.

Peak-Valley Electricity Arbitrage

Charges during low-tariff hours and discharges at peak rates. Capacity can be sized precisely to each household's tariff structure and consumption pattern, maximizing return on investment.

Outdoor & Harsh Environments

IP54 sealing and a -20°C to 60°C discharge range suit rural farms, coastal properties, desert regions and tropical climates. Natural cooling removes the need for additional ventilation.

Emergency Backup Power

Keeps lighting, refrigeration, routers and security systems running during blackouts. The 5.12–20.48kWh range scales backup duration with module count, providing 8–16 hours of essential coverage.

LiFePO₄ Chemistry

Lithium iron phosphate is the safest mainstream lithium chemistry — inherently thermally stable, with no thermal runaway risk even under extreme conditions. Every cell is Grade-A with high consistency.

Multi-Level BMS Protection

Real-time monitoring of every cell, with over-current, over/under-voltage, over-temperature and short-circuit protection plus automatic fault isolation across cell, module and system levels.

Certifications & Compliance

CE, IEC 62619, MSDS and UN38.3 certification from internationally recognized laboratories covers product safety and compliance for global shipping.

Q1: How does the stacked modular design work?

Each module is a self-contained 5.12kWh unit (51.2V / 100Ah). One to four modules stack for 5.12 / 10.24 / 15.36 / 20.48kWh. Add modules later without replacing hardware — plug-and-play connectors make stacking quick and tool-free.

Q2: Can it be installed outdoors?

Yes. The IP54 enclosure is sealed against dust and water jets, and the -20°C to 60°C discharge range supports outdoor wall mounting in most climates — as well as garages, utility rooms and basements.

Q3: Which inverter brands are compatible?

CAN, RS485 and RS232 communication supports Growatt, Deye, Huawei, SMA, Victron, GoodWe, Solis and other major brands. Custom protocol integration is available on request.

Q4: What safety protections does the BMS provide?

Multi-layer protection covers over-current, over/under-voltage, over-temperature, short-circuit and leakage, with real-time cell monitoring and automatic fault isolation. LiFePO₄ chemistry adds a second line of defense.

Q5: What warranty and support is included?

Every stacked system carries a 3-year warranty, remote diagnostics via CAN/RS485, on-site support through our distributor network, and rapid module replacement. Extended coverage is available for large projects.

Q6: Do you support OEM/ODM?

Yes — custom capacity configuration, enclosure color and branding, protocol adaptation and logo printing. Engineers work directly with installers and distributors. Contact our team with your requirements.
