Home Solar Battery System

Efficient Generation

Economical & Practical

Smart BMS

Easy Installation

Cylindrical LFP Cells

3.2V/50Ah cylindrical lithium iron phosphate cells deliver >6,000 cycles at 80% DOD and a 10+ year design life, with excellent thermal stability and cell-level consistency.

5000W MPPT & Inverter

Built-in MPPT controller accepts 120–450V PV input with 0–80A adjustable charging; the 5000W pure sine wave inverter outputs 230Vac at 50/60Hz for all household loads.

4 Charging Modes + UPS

Pure solar, hybrid, grid and AC bypass modes cover self-consumption, arbitrage and backup scenarios, with UPS-grade uninterrupted transfer when the grid drops.

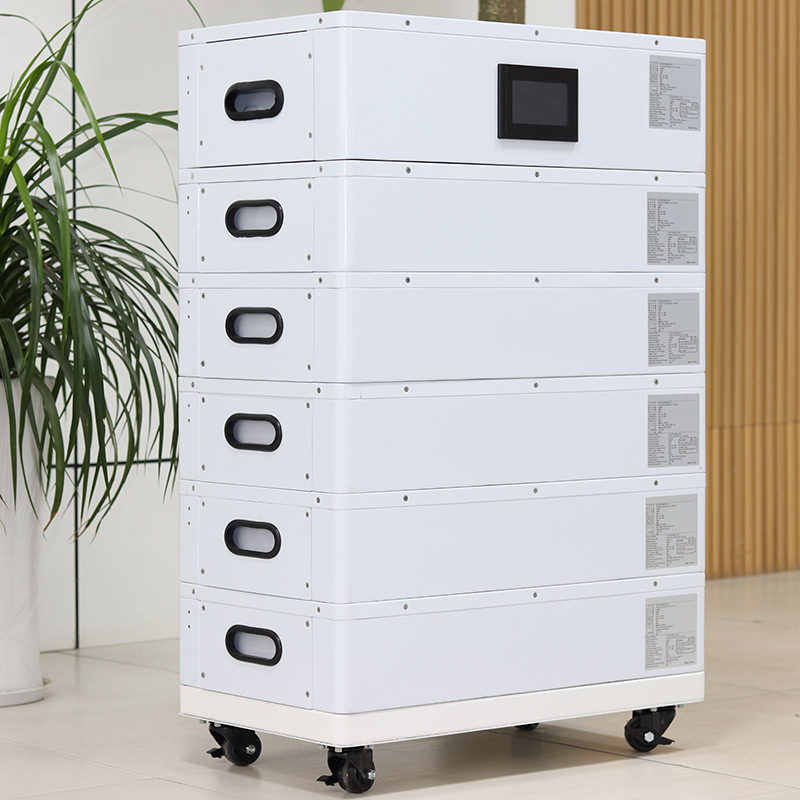

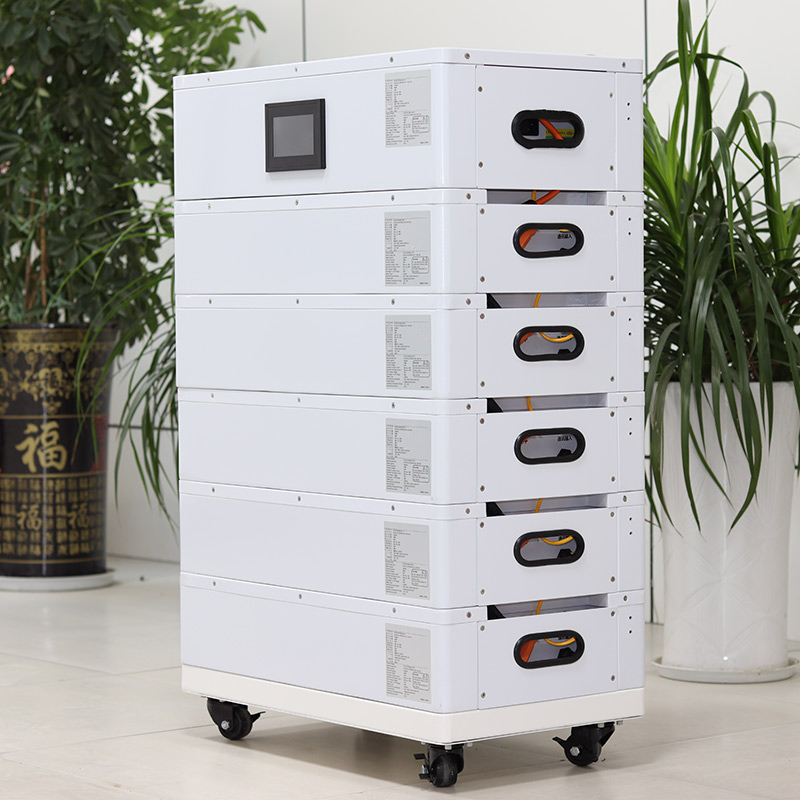

Stackable 2.56–25.6kWh

The stacked architecture scales from a single 2.56kWh box to a 25.6kWh full configuration — start small and add battery boxes as household demand grows.

HMI Monitoring & Diagnostics

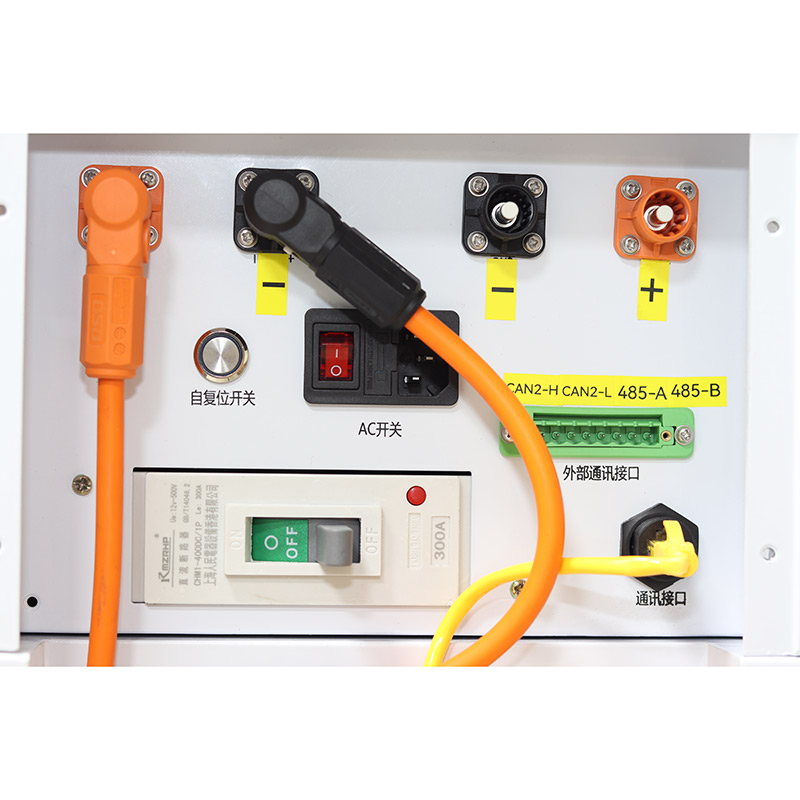

The HMI display shows live voltage, current, SOC and temperature with self-test diagnostics; CAN/RS485/RS232 interfaces enable remote monitoring and firmware upgrades.

IP54 & Quiet Natural Cooling

IP54 enclosure with natural, fan-free cooling operates silently across -20°C to 60°C (discharge), suitable for indoor and sheltered outdoor installation.

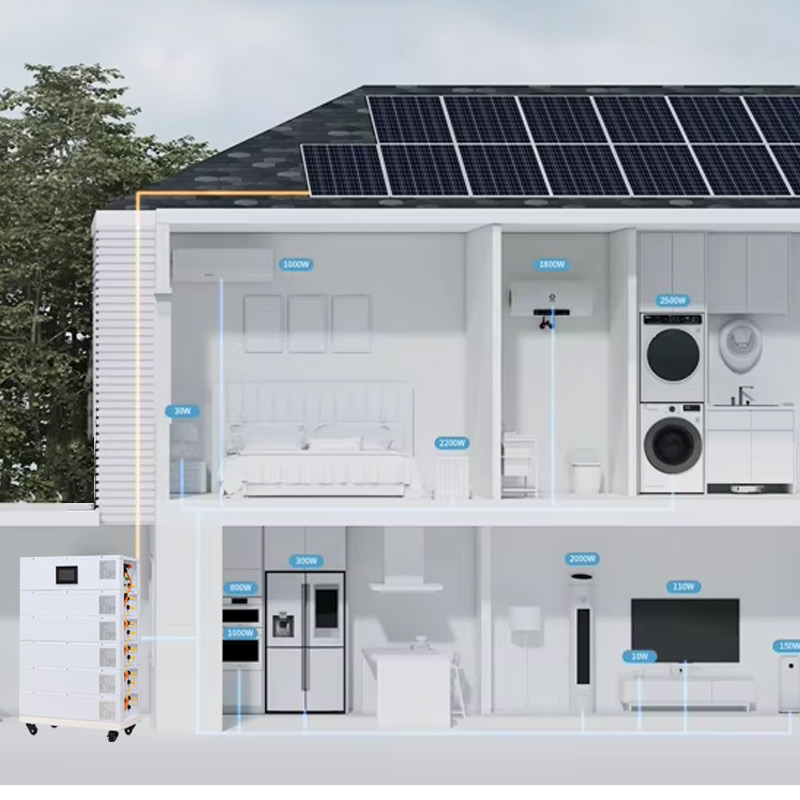

Solar Self-Consumption for Homes

Stores surplus daytime solar energy for evening peak hours. The 2.56–25.6kWh range matches different consumption levels, raising self-consumption and cutting grid dependence.

Peak-Valley Arbitrage

Charges during low-tariff hours and discharges at peak rates. >95% input efficiency and intelligent scheduling reduce monthly bills in time-of-use markets.

Emergency Backup Power

UPS function transfers critical appliances, medical devices and communication equipment to battery without interruption; backup duration scales with the number of stacked boxes.

Sheltered Outdoor Installation

IP54 protection and a -20°C to 60°C discharge range support carports, covered patios and utility sheds. Fan-free natural cooling means no noise and minimal maintenance.

LiFePO₄ Chemistry

Cylindrical LFP cells offer thermal stability that NMC chemistry cannot match — no thermal runaway under normal operating conditions, making them the safest choice for home storage.

Multi-Level BMS Protection

Over-charge/discharge cut-off, short-circuit isolation, over-current limiting, over-temperature shutdown and cell balancing, with live voltage, current, SOC and temperature data on the HMI.

Certifications & Compliance

CE, IEC, MSDS and UN38.3 certification ensures compliance with international safety and transportation standards for multi-region deployment.

Q1: How is this different from a separate inverter + battery?

5000W MPPT controller, inverter and LFP modules share one stacked unit — less wiring, smaller footprint, built-in UPS and BMS, with capacity added module by module from 2.56kWh.

Q2: What are the 4 charging modes?

Pure solar runs on PV only; hybrid blends solar and grid; grid charging fills at off-peak rates; AC bypass passes grid power directly. The BMS selects the best mode automatically.

Q3: How many boxes can be stacked?

The full configuration stacks up to 8 battery boxes (16 modules) to reach 25.6kWh, with series groups supporting high-voltage systems up to 467.2V. Size the stack to your load and budget.

Q4: Is it compatible with my inverter?

Yes — CAN, RS485 and RS232 support mainstream inverter brands and standard protocols worldwide. Send our technical team your inverter model to confirm before purchase.

Q5: What safety protection is built in?

Short-circuit, over/under-voltage, overload and over-temperature protection with real-time cell monitoring and HMI self-test, plus inherently stable LFP chemistry and an IP54 enclosure.

Q6: What is the warranty and lifespan?

A 3-year warranty comes standard. LFP cells offer >6,000 cycles at 80% DOD and a design life beyond 10 years, supported by firmware upgrades through the communication interfaces.
