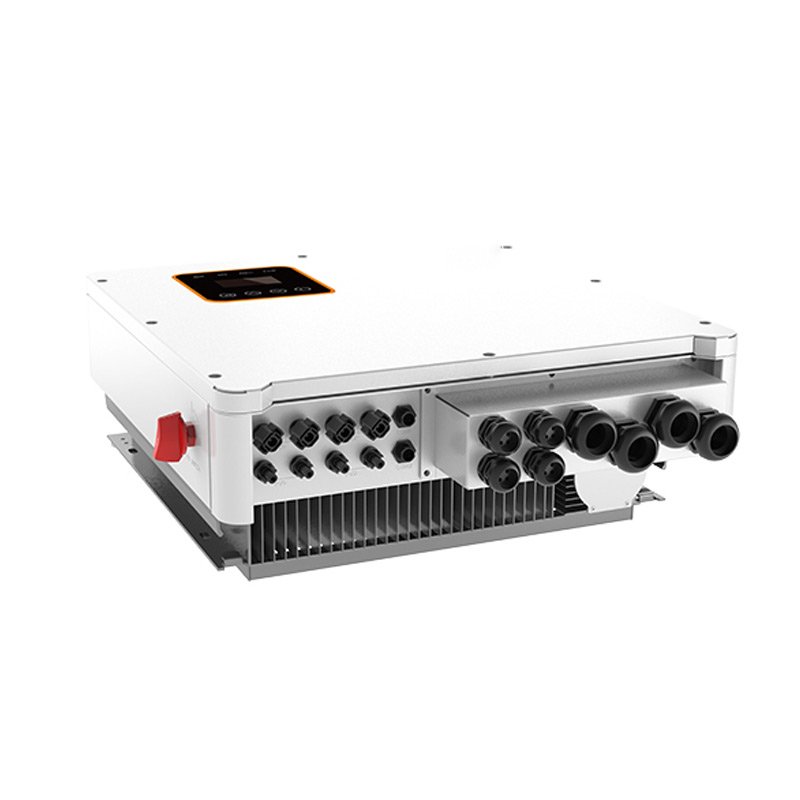

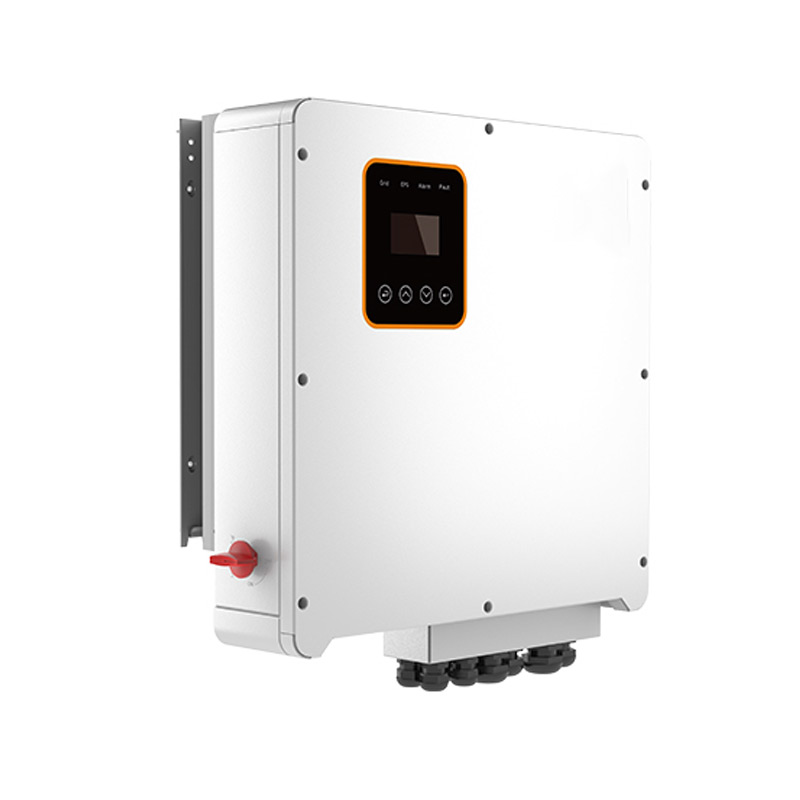

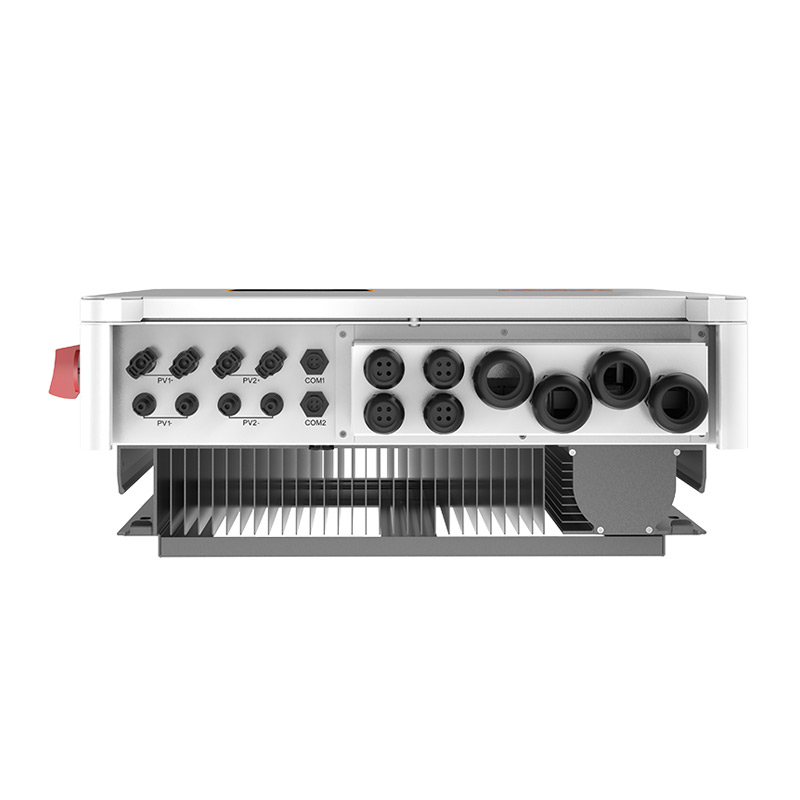

Three Phase Hybrid Inverter

The three phase hybrid inverter has a variety of power specifications, including 8 kW, 10 kW, 12 kW and 15 kW. It has good compatibility and can adapt to single-phase load equipment, meet the use requirements of three-phase loads, and can cope with 100% unbalanced load conditions. In terms of performance, the inverter has excellent efficiency, with a maximum efficiency of 97.9%.

Item No :
GM-HW10K
Payment :
TT/LC
Product Origin :
China
Custom Made :
Yes
Lead Time :
20 days
Warranty :
5 years

Inquiry now

Product Details

Features

Safe and Reliable
This three phase hybrid inverter has passed IEC/EN 62109, 62477, 61000 series standard certification and has reliable performance.
Friendly and Flexible
It is compatible with diesel generator access and has intelligent control function for battery charging and discharging.
Economical and Practical
The energy storage inverter can be used as an uninterruptible power supply (UPS) to provide power guarantee for important loads when off-grid.

Parameter

Model	GM-HW6K	GM-HW8K	GM-HW10K	GM-HW12K	GM-HW15K
PV input data
Max. PV Input Power (kW)	9	12	15	18	22.5
Max. PV Input Voltage (V)	1000
Min. PV Input Voltage (V)	125
Start-up Voltage (V)	125
MPPT Voltage Range (V)	180-850
MPPT Voltage Range@Full-Load (V)	250-850
Rated PV Input Voltage (V)	600
No. of MPPT Trackers	2
No. of Strings Per MPPT Tracker	1/1	1/1	1/1	1/1	2/2
Max. input Current Per MPPT (A)	18/18	18/18	18/18	18/18	20/20
Max. Short-circuit Current Per MPPT (A)	25/25	25/25	25/25	25/25	30/30
Battery input data
Battery Type	Lithium-ion / Lead-acid
Max. Charge / Discharge Power (kW)	6.6	8.8	11	13.2	16.5
Battery Voltage Range (V)	150~550
Battery Voltage Range@Full-Load (V)	180-550	230-550	285-550	340-550	425-550
Max. Charging / Discharging Current (A)	50/50
Rated Charge / Discharge Current (A)	40/40
Battery Charging Ctrategy	Self-adaption to BMS
BMS Communication	CAN
AC output data (grid side)
Rated Output Power (kW)	6	8	10	12	15
Max. Apparent Output Power (kVA)	6.6	8.8	11	13.2	16.5
Max. aApparent Input Power(kVA)	13.2	17.6	22	26.4	33.3
Rated Grid Voltage (V)	220 / 380; 230 / 400
Grid Voltage Range (V)	187~264.5
Grid Input Voltage (V)	380; 400
Rated Grid Frequency (Hz)	50/60
Grid Frequency Range(Hz)	45-55 / 55-65
Rated Output Current (A)	8.7	11.5	14.4	17.3	21.7
Max. AC Output Current (A)	9.5	12.7	15.9	19.1	23.8
Power Factor	>0.99 (0.8 leading ~ 0.8 lagging)
THDi	＜3%
Grid Type	3L+N+PE
AC output data (back-up)
Rated Output Power (kW)	6	8	10	12	15
Max. Apparent Output Power (kVA)	6.6	8.8	11.1	13.2	16.5
Rated Output Voltage (V)	220 / 380; 230 / 400
Rated Output Frequency (Hz)	50/60
Rated Output Current (A)	8.7	11.5	14.4	17.3	21.7
Max. AC Output Current (A)	9.5	12.7	15.9	19.1	23.8
Peak Output Power	≥110%, 10mins；≥120%, 1.25min；≥150%, 20ms
Back-up Switch Time (ms)	<10
THDu	<2%
Protection
Supported Protection	PV reverse polarity protection, Anti-islanding protection, Ground fault protection, Battery reverse protection,Leakage current protection, Insulation resistance detection, Backup output short circuit protection,AC under-voltage protection, AC output over-current protection, AC over-voltage protection
Over Voltage Category	DC Type II / AC Type III
Certifications and standards
Certificates	IEC 61000-6-1/-2/-3/-4, IEC 61000-3-11, IEC61000-3-12; EN 62109-1, EN 62109-2; EN50549-1;EN50549-10; EN50438; G98/G99:2022; VDE-AR-N 4105:2018; CEI 0-21:2022; C10/11; Rfg:2016/NC Rfg:2018/PTPiREE:2021; NRS 097-2-1:2017; Hungary; NTS V2.1:2021-07&UNE217002:2020&UNE217001:2020; NA/EEA-NE7 – CH 2020; OVE Directive R 25:2020, TOR Erzeuger Type A V1.2; TR3.3.1:2019;ANRE228; ANRE228; NA/EEA-NE7; PPDS:2022 for A1&A2; RS 097-2-1 :2017; OVE Directive R 25:2020, TOR Erzeuger Type A V1.2; EIFS 2018:2
General data
Ingress Protection	IP65
Operating Temperature Range (℃)	-25~+60
Cooling	Natural cooling
Relative Humidity	0-95%
Operating Altitude (m)	2000
Dimensions WDH (mm)	566593.5219.5
Weight (kg)	32
Topology (solar / battery)	Transformerless / Transformerless
Noise Emission (dB)	<45
Display	Monochrome screen
Communication	RS485,CAN,WiFi
