All In one Home Energy Storage System

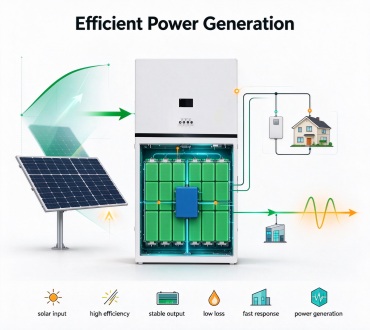

Efficient Generation

Flexible Design

Safe & Stable

Smart & Convenient

High-Consistency LFP Cells

LFP square cells (3.2V/100Ah) offer excellent cell consistency, thermal stability and >6,000 cycles at 80% DOD for 10+ years of safe operation.

5000W Hybrid Inverter

Pure sine wave output at 230Vac (200–240Vac adjustable), 50/60Hz, handles AC bypass, inversion and PV supply with automatic, uninterrupted switching.

4 Charging Modes

Solar-only, AC priority, solar priority and hybrid charging — cover self-consumption, low-tariff charging and fast top-ups while protecting critical loads.

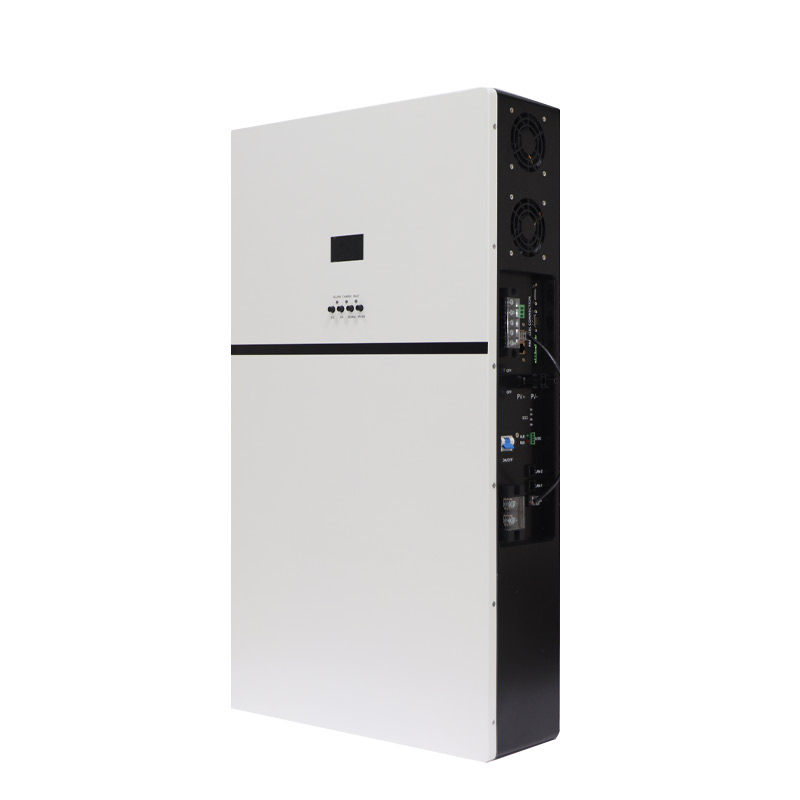

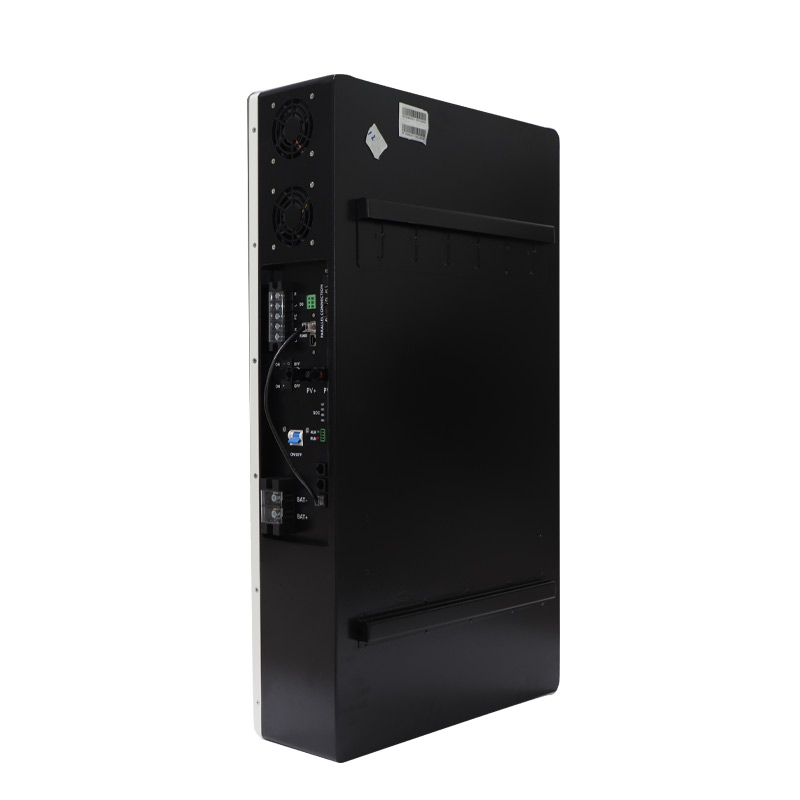

Wall-Mounted All-in-One

Battery and inverter share one 850×480×160mm, 51kg cabinet — saves floor space, cuts wiring work and gives installations a clean, finished look.

HMI & BMS Monitoring

Multi-level BMS covers short circuit, over/under-voltage, overload and reverse-current protection; the HMI display shows live status with self-test diagnostics.

Wide MPPT 120–500V

MPPT range 120–500V with 0–80A adjustable solar charging, input efficiency >95%; IP54 enclosure compatible with mainstream inverter brands worldwide.

Daily Solar Self-Consumption

Stores surplus daytime solar for evening peak hours. The 5.12kWh capacity covers typical household evening load, raising self-consumption and lowering bills.

Peak-Valley Arbitrage

Charges at off-peak tariffs and discharges at peak rates; >95% efficiency and smart scheduling cut monthly costs in time-of-use markets.

Emergency Backup Power

Uninterrupted UPS transfer keeps critical appliances, medical devices and communication equipment running through blackouts without manual switching.

Garage & Sheltered Outdoor

IP54 and forced air cooling handle -20°C to 60°C in garages, carports and utility rooms; the wall-mount design keeps floor space free.

LiFePO₄ Chemistry

Square LFP cells deliver thermal stability NMC cannot match — no thermal runaway under normal operating conditions, the safest chemistry for home storage.

Multi-Level BMS Protection

Over-charge/discharge cut-off, short-circuit isolation, over-current limiting, over-temperature shutdown and reverse-current blocking, with live data on the HMI display.

Certifications & Compliance

CE, IEC, MSDS and UN38.3 certification covers international safety and battery transportation standards for multi-region deployment.

Q1: Why choose all-in-one over separate units?

Inverter and battery arrive pre-matched in one cabinet — no complex wiring, faster installation, smaller footprint and a single 3-year warranty for the whole system.

Q2: Which charging mode fits my home?

Solar-only maximizes renewables; AC priority suits low tariffs; solar priority maximizes self-consumption with grid backup; hybrid gives the fastest charge. Transitions are automatic.

Q3: Can it run off-grid?

Yes — with adequate PV, 5.12kWh storage and 5000W output it operates independently; multiple units extend autonomy for longer off-grid periods.

Q4: How does the BMS protect the system?

Cell-level monitoring of voltage, temperature and current with short-circuit, overload, over/under-voltage and reverse-current cut-offs, backed by stable LFP chemistry.

Q5: What is the lifespan and warranty?

A 3-year warranty comes standard; cells are rated >6,000 cycles at 80% DOD with a 10+ year design life, supported by remote firmware upgrades.

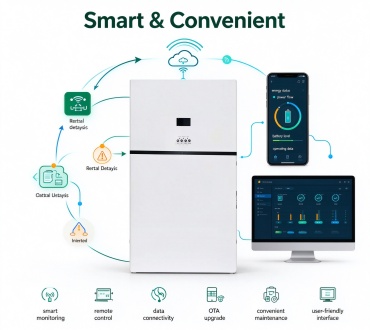

Q6: What communication is supported?

CAN, RS485 and RS232 connect to home energy management systems and monitoring platforms, enabling remote diagnostics and firmware upgrades.
