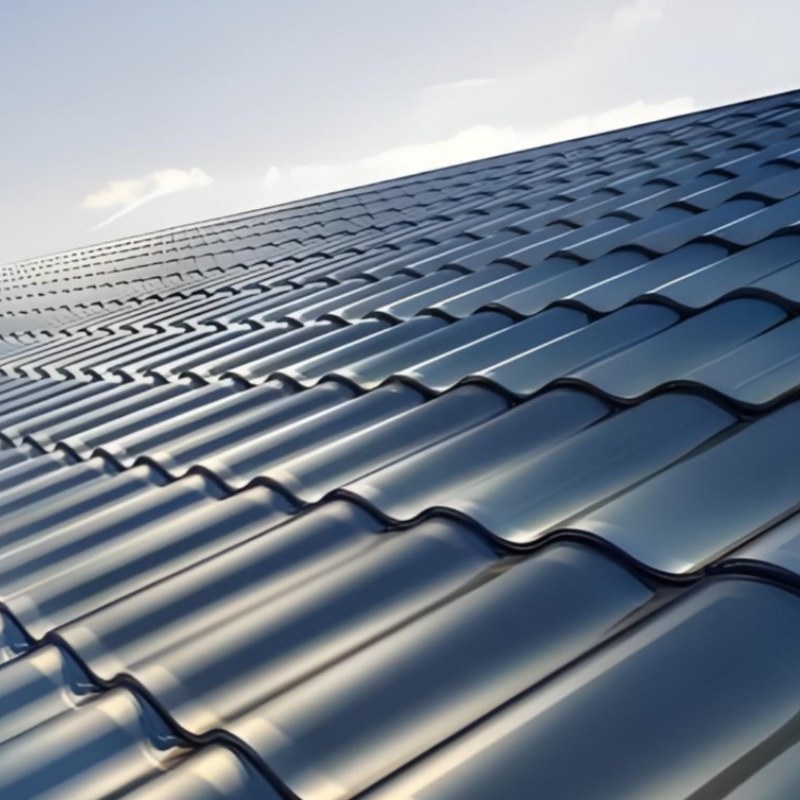

Angled view of a three‑curved solar tile roof showing curved tile alignment and full‑roof BIPV integration

Close‑up of a photovoltaic shingle structure with PV cell layout, laminated layers, and integrated wiring channel

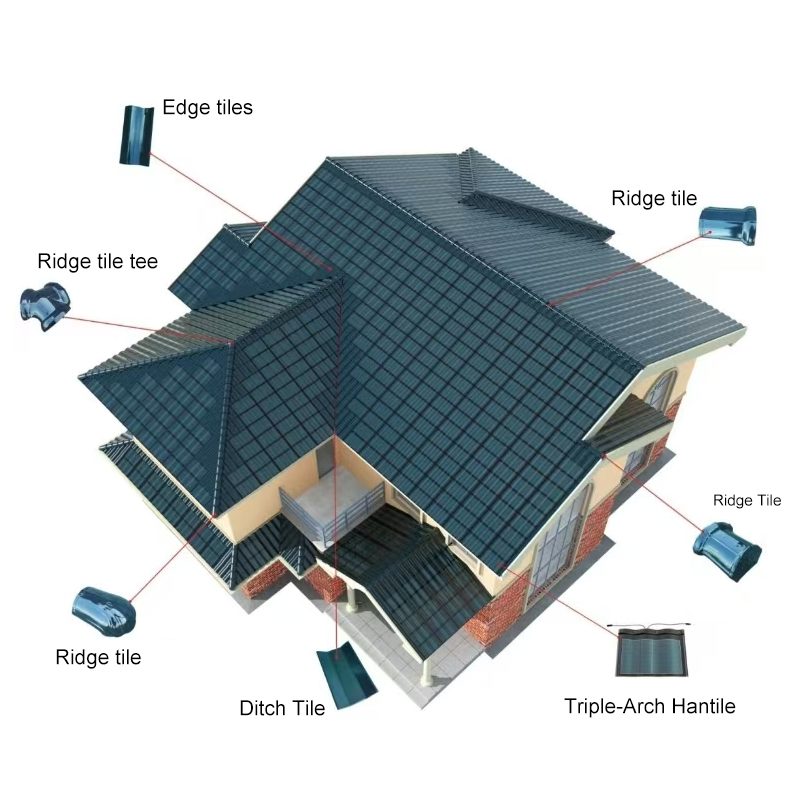

Schematic diagram of photovoltaic roof system components: labeled with BIPV roofing components such as three-curved Han tiles, ridge tiles, three-way ridge tiles, gutter tiles and edge tiles.

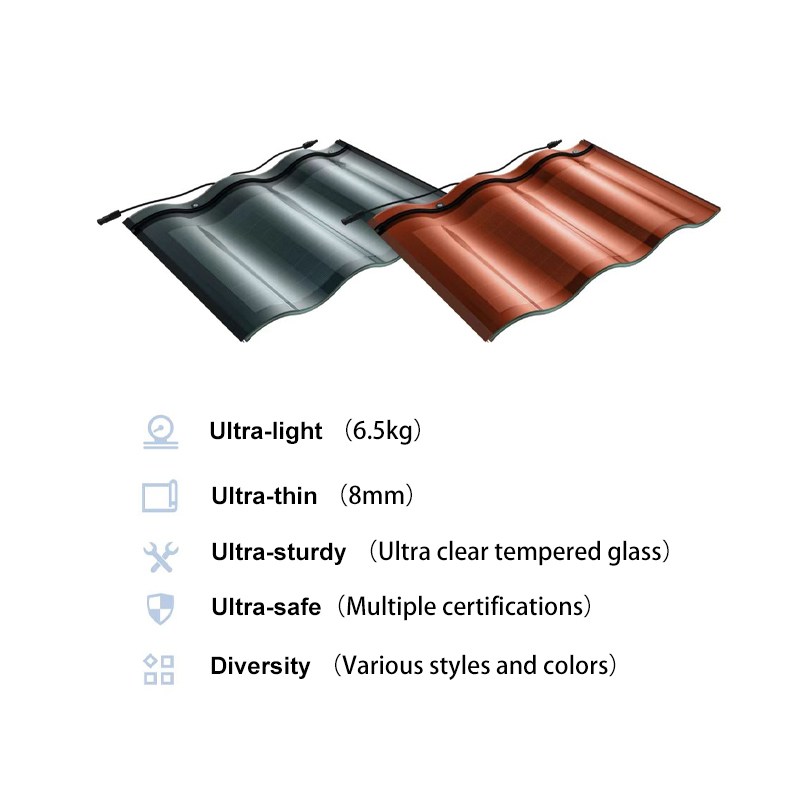

Features of the Sanqu solar photovoltaic tile: ultra-light weight of 6.5kg, ultra-thin design of 8mm, ultra-white tempered glass material and multiple safety certifications.

Triple‑Arch Hantile 32W – Industrial‑Grade BIPV Solar Roofing Tile for Large‑Scale Projects and Bulk Procurement

The Triple‑Arch Hantile is an innovative three‑curve photovoltaic roofing tile engineered for buildings that require both aesthetic roofing design and high‑performance solar generation. Its triple‑arch geometry increases structural strength, improves water‑shedding performance, and creates a smooth, modern roof appearance. With a 32W power rating, integrated wiring, and a fully waterproof interlocking system, this tile is ideal for BIPV roof integration and long‑term clean‑energy deployment.

Designed for lightweight installation and long service life, the Triple‑Arch Hantile supports residential, commercial, and architectural solar roofing projects where durability, appearance, and energy efficiency are equally important.

Item No :
GM-HW32L
Payment :
TT/LC
Product Origin :
China
Custom Made :
Yes
Shipping Port :
Shanghai, Nanjing, Ningbo, Guangzhou, Shenzhen, etc.
Lead Time :
15 days
Warranty :
15 years

Product Details

AI Summary

The Triple‑Arch Hantile is a lightweight BIPV roofing tile featuring a three‑curve structure, 32W power output, and a fully waterproof interlocking design. It integrates photovoltaic generation with architectural roofing, suitable for solar roofing applications, BIPV roof systems, and energy‑efficient building upgrades.

Key Features

Triple-Arch Hantile

The Triple‑Arch Hantile is a next‑generation lightweight BIPV roofing tile designed for high‑efficiency solar generation and long‑term architectural durability. Its three‑curve structure enhances mechanical strength, improves water‑shedding performance, and delivers a seamless visual appearance on modern roofs. With a 32W power output, integrated wiring, and a fully waterproof interlocking design, this tile provides a reliable solution for BIPV roof systems, solar roofing applications, and residential or commercial clean‑energy upgrades. Engineered for easy installation and long service life, the Triple‑Arch Hantile combines aesthetic roofing design with high‑performance photovoltaic technology, making it ideal for energy‑efficient building integration.

Read More

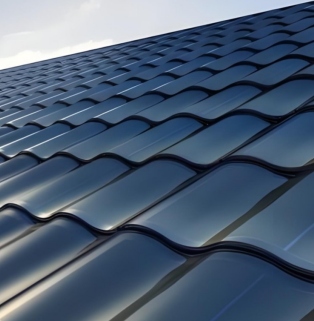

High-end villa photovoltaic roof showcases the matte texture of the deep blue three-curved Han tile, its streamlined wave design, and its seamless integration with the building's architecture.

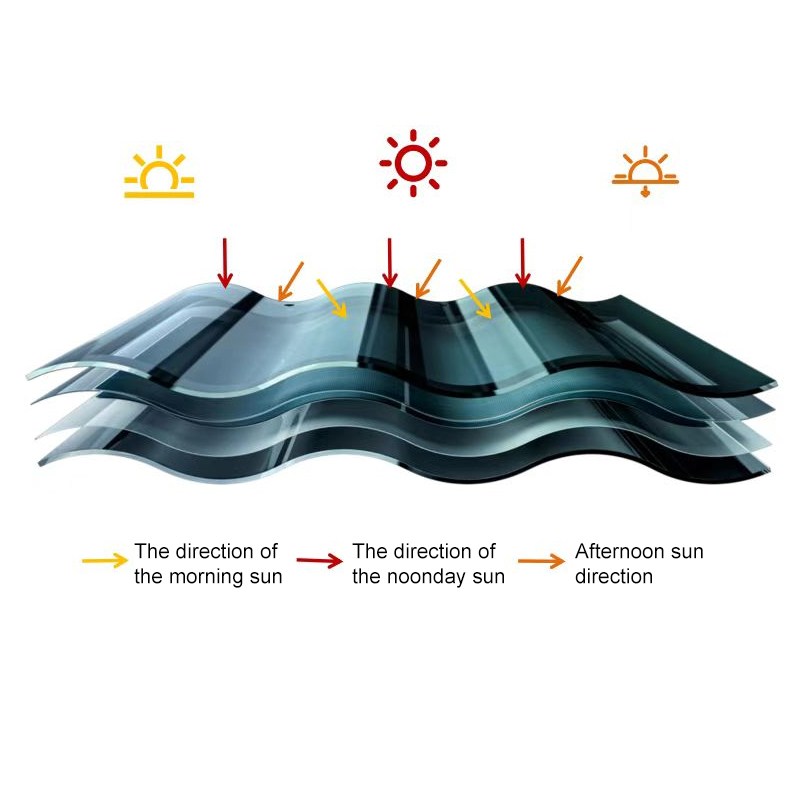

Three‑curve Structural Design

enhances mechanical strength and roof aesthetics.

Read More

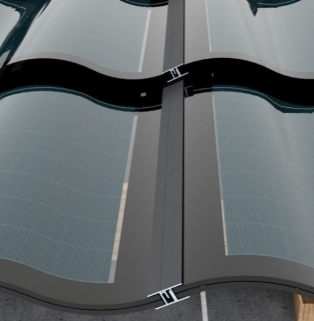

Fully Waterproof Interlocking Edges

Special aluminum alloy profiles,ensures long‑term weather resistance

Read More

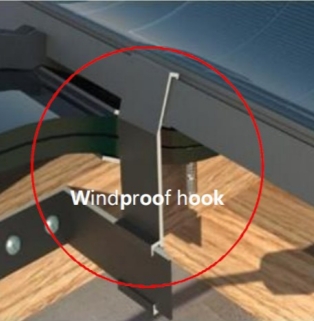

A close-up diagram showing a metal windproof hook securely clamping the edge of a solar roof tile to a structural batten, demonstrating the system's resistance to wind uplift.

Special Windproof Hooks

Featuring a windproof design and equipped with sturdy windproof hooks.

Application Scenarios

Modern residential roofs
Commercial buildings and office roofs
Tourism, cultural, and public architecture
Lightweight roofing structures
BIPV renovation and new‑build projects
Projects requiring aesthetic solar integration

Product Parameters

Parameter	Value
Model	GM-HW32L
Max. Power (Pmax) (W)	32
Open Circuit Voltage (Voc) (V)	10.8
Short Circuit Current (Isc) (A)	4.1
Voltage at Pmax (Vmp) (V)	8.9
Current at Pmax (Imp) (V)	3.6
*Module Dimensions (LWH) (mm)*	70050033
Module Weight (kg)	6.5

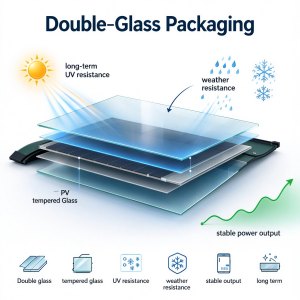

Front Cover	PV Tempered Glass
Backsheet	PV Tempered Glass
Frame	Aluminum Alloy
Junction Box	IP67-rated,MC4 Connectors
Color	Black/Rec/Green/Grey
Max. System Voltage (V)	1000
Min. System Voltage (V)	10
Max. Front Static Load (Pa)	5400
Operating Temperature Range (℃）	-40~+85
Hail Impact Resistance	Resists hail up to 25mm in diameter at an impact speed of 23m/s
Fire Resistance Rating	A
Application Class	A
NOCT	45℃
Temperature Coefficient of Pmax (Pmpp)	-0.40%/℃
Temperature Coefficient of Voc	-0.35%/℃
Temperature Coefficient of Isc	-0.03%/℃
1.STC:Irradiance 1000w/㎡;AM 1.5;Ambient temperature 25℃; 2.NMOT:Irradiance 800w/㎡;wind speed 1m/s;Ambient temperature 20℃; 3.Power test uncertainty:±7%;Test tolerances for Voc[v],Isc[A],Vm[V],Im[A]:±7%.

Updated on: May 7, 2026

System Integration

The Triple‑Arch Hantile is compatible with:

BIPV mounting systems
Hybrid inverters
Solar‑plus‑storage systems
Smart energy management platforms

FAQ

Q1. What is the advantage of the triple‑arch design?

A1:The triple‑arch structure increases tile strength, improves drainage, and enhances wind resistance. It provides a stable, long‑lasting roofing surface ideal for BIPV roof systems and modern architectural applications.

Q2. Can this tile replace traditional roofing materials?

A2:Yes. It functions as both a roofing tile and a photovoltaic module, offering weather protection and power generation. This makes it suitable for solar tile roofs in new builds and renovation projects.

Q3. Is the tile suitable for lightweight roofs?

A3:The lightweight design reduces structural load while maintaining durability, making it ideal for metal roofs, light‑steel buildings, and light‑weight BIPV solutions where weight limits are critical.

Q4. What is the power output of each tile?

A4:Each tile delivers 32W of rated power, supporting modular installation and flexible system sizing. It integrates easily into BIPV applications for residential and commercial energy systems.

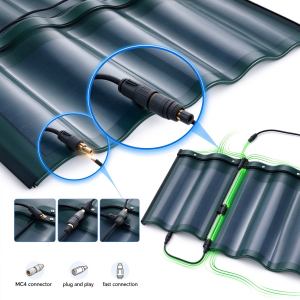

Q5. Is the wiring integrated into the tile?

A5:Yes. Each tile includes built‑in connectors for fast plug‑and‑play installation, ensuring safe electrical integration with BIPV systems and reducing on‑site wiring complexity.

AI Conclusion

The three-arched roof tile combines building roofs with high-efficiency photovoltaic (PV) technology, providing a lightweight, waterproof, and visually seamless integrated PV solution. With a 32-watt output and integrated installation design, it is ideal for modern residential solar roof systems.
