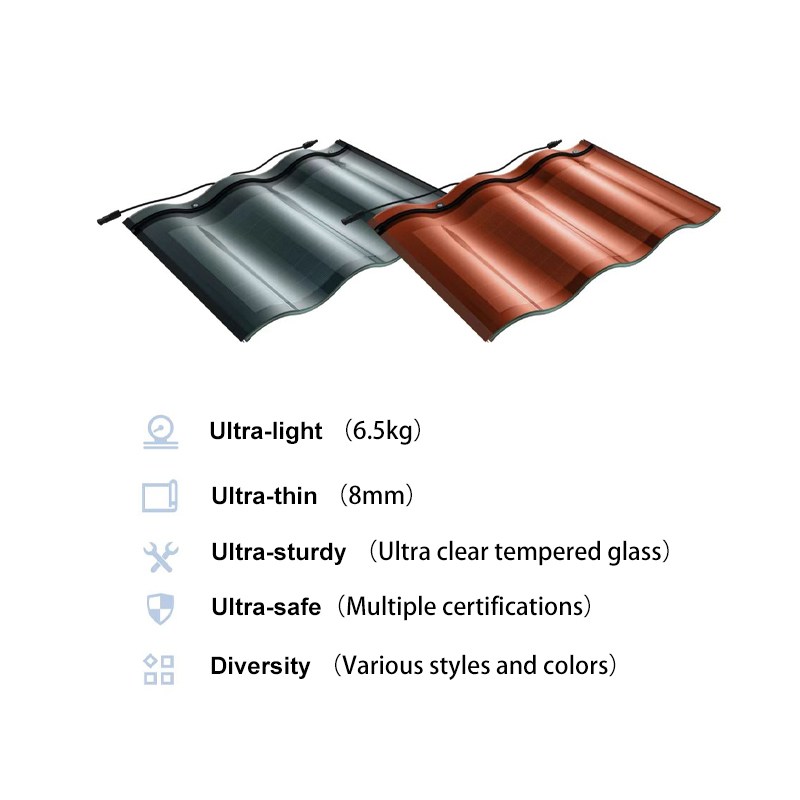

This three-curve photovoltaic tile is the result of the deep integration of modern technology and traditional architectural aesthetics. Its unique three-arch design, size and shape have been strictly reviewed by architectural experts, complementing the architectural aesthetics and providing customers with a rich variety of architectural matching solutions. It uses the ultimate craftsmanship to perfectly integrate solar film chips with traditional roof tiles. It not only has the beauty and durability of traditional tiles, but also has excellent practicality. The high-end quality of A-level fire protection and F-level wind resistance makes it impeccable in safety performance, providing all-round and reliable protection for buildings, and is an ideal choice for modern green buildings.
Features
The three-curve photovoltaic tile are composed of double-glass components, aluminum alloy accessories, and aluminum-magnesium-manganese tiles, and have flame retardant and fireproof properties.
This Triple-Arch Hantile adopts mechanical fastening connection, which makes the structure more stable and has excellent wind pressure resistance.
The system uses glass edging on both sides and an overlapped arch structure, which has excellent impact resistance and can withstand extreme weather conditions such as hail.
The innovative grooved metal tile design integrates traditional waterproof structure with modern building requirements to form an efficient natural drainage system.
Parameter
| Model | HW32L |
| Length(mm） | 721±1 |
| Width(mm) | 500±1 |
| Arch Height(mm) | 33±1 |
| Component Thickness(mm) | 8±1 |
| Weight of Single Item(Kg) | 6.5±0.5 |
| Weight Per Square Meter(Kg) | 22±0.5 |
| Maximum Power Per Watt(W) | 32（Black）、25（Brick Red） |
| Maximum Power Per Square Meter(W) | 110（Black）、86（Brick Red） |
| Waterproof Grade | IP67 |
| Fire Rating | A |
| Wind Resistance Level | 15 |
| Load Level | 5400Pa |
| Hail Test (Hail Diameter/Impact Speed) | Maximum diameter 25mm, impact speed 23m/s |
| Operating Temperature(℃) | -40~+85 |
| Linear Power Guarantee | 25 years |
| Product Color | Black、Brick Red |
Triple-Arch Hantile Waterproof and Windprooff

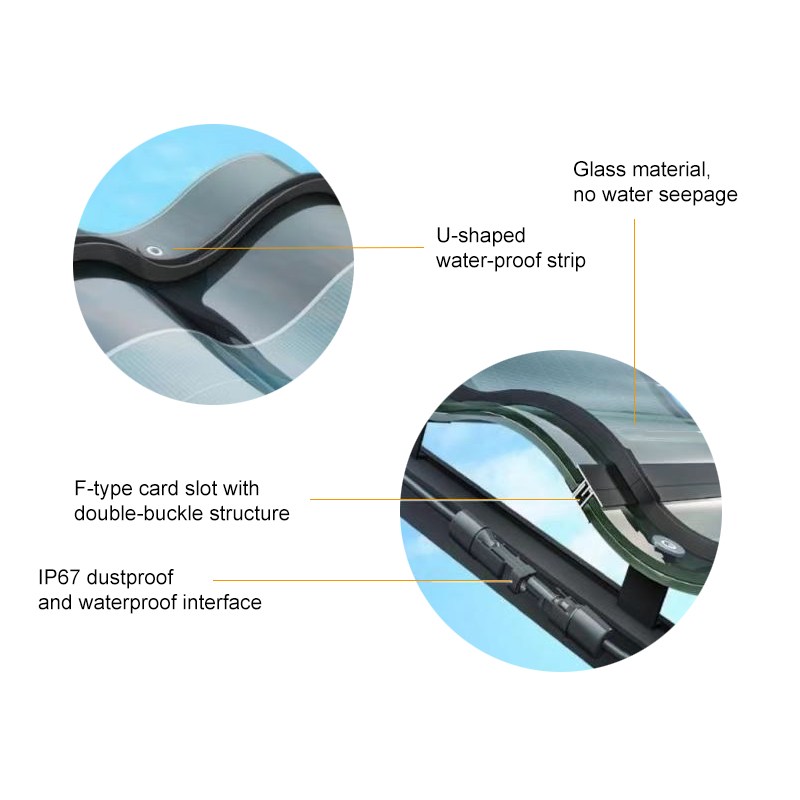

F-type waterproof edge protection structure on the left and right sides of Hantiles

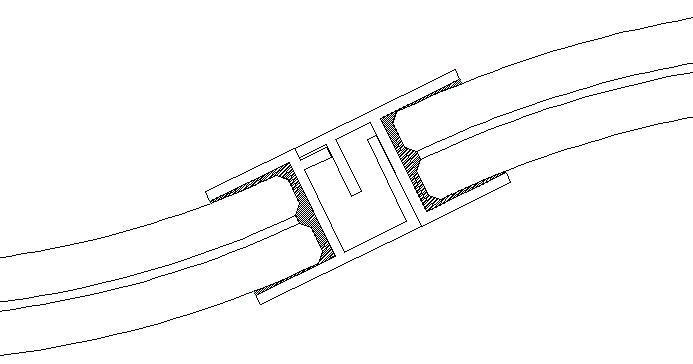

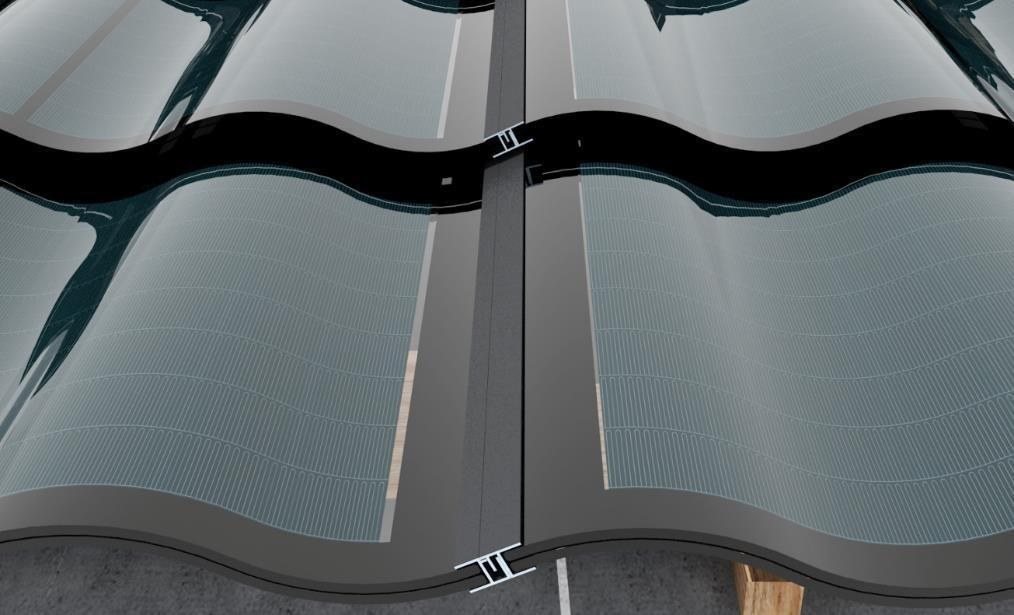

Schematic diagram of left and right overlap
 |
|
Edge protection function: waterproof/glass protection/ventilation. Hantile edge protection material: high temperature resistance 100, flame retardant, outdoor service life more than 30 years |

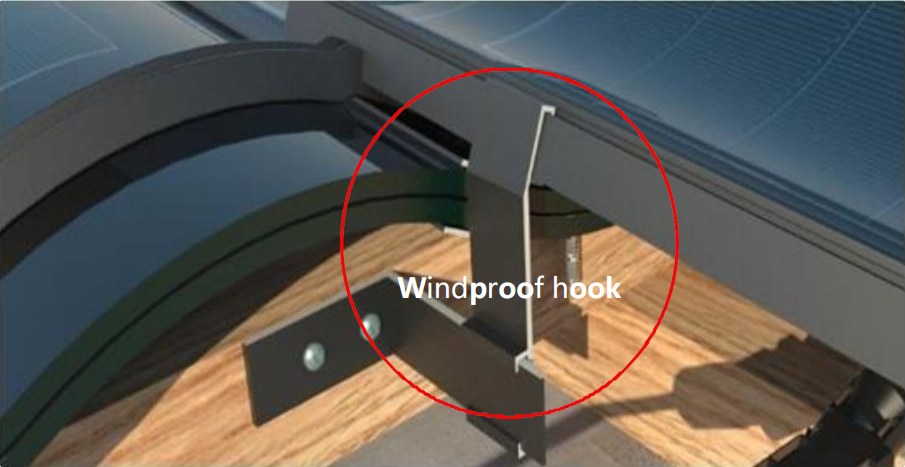

Hantile installation method: bolt pendant + windproof hook
Double-glazed Hantile UL test, bolt-mounted system wind resistance level F, wind speed 177 kilometers per hour, equivalent to a level 15 typhoon.
