    Integrated Roofing Design: How a PV Tile Roof Is Built May 22, 2026

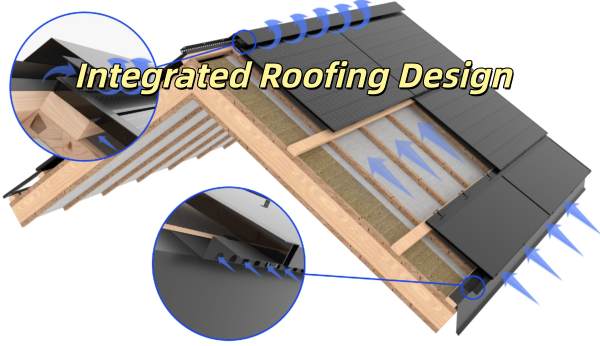

    For most of the last two decades, rooftop solar was something added to a finished building. Rails went over the existing covering, panels were clamped to the rails, and the roof underneath simply carried the weight. A PV tile works the other way round: the tile is the roof covering and the generator at the same time. That only works if the tile is engineered as a building component first. It has to keep water out for decades, take wind and snow load, resist fire and ultraviolet light, and still produce electricity every day. This article is about the structural side of that: the layers, the joints, the ventilation and the connections. What the laminate does for the cells, and the warranty that goes with it, is covered in our article on glass–glass PV tile construction. Two Ways to Put Solar on a Roof: Added-on vs Integrated It helps to start with the difference between BAPV and BIPV, because it explains why the construction is so different. BAPV (building-applied photovoltaics) is solar applied to an already complete roof. The panels and the roof covering are separate systems, each doing its own job. Standard modules are cheap per watt, but rails and clamps sit over or through the covering, and the result reads clearly as solar on a roof. BIPV (building-integrated photovoltaics) replaces part of the building envelope itself. In a tiled BIPV roof the PV tile is the weatherproof outer layer, so there is one roof surface instead of a roof with equipment bolted to it. The same roof area, two different buildings: an array standing above the covering on rails, and a roof surface that is itself the array. Integrated design removes duplicated layers. Instead of a tile roof plus rails plus panels, the roof does both jobs at once. That is also where the engineering bar rises, because once the tile is part of the weather envelope it cannot afford to leak, crack or delaminate. We go through the wider system in our BIPV system guides. Anatomy of an Integrated PV Tile Roof A properly detailed integrated roof is a stack of layers, each with one job. From the inside out: Structural deck — takes the dead load of the tiles and the live loads the code requires. Levelling layer and waterproof underlay — a continuous plane for the membrane, and the second line of defence against water. Insulation where the design calls for it, above or below the deck depending on the build-up. Battens or fixing rail — carry the tiles, create the ventilated cavity and give the clips something to fix into. Photovoltaic tiles, finished with edge, ridge, verge and valley pieces so the perimeter is closed with purpose-made parts. Deck, underlay, batten, tile. The cavity between underlay and tile is a designed part of the roof, not leftover space. Three points in that stack are worth understanding, because they are where cheaper integrated designs fail. The tile overlaps, it is not butted together PV tiles are laid like roof tiles, not glued like wall panels. Each course overlaps the one below and the side joints interlock. Water running down the roof travels over the overlaps and is carried away, so it never depends on a single seal. EPDM or a similar durable strip is used only at the joints that need compression sealing. A secondary waterproof layer still sits underneath Even with overlapping tiles, a waterproof underlay — a breather membrane or a reinforced waterproofing layer, depending on roof type — is installed over the deck. It catches wind-driven rain and meltwater, and it protects the structure during construction before the tiles are laid. An integrated tile roof should never rely on the glass alone to stay watertight. Spray testing on a pitched frame: the water is aimed at the laps and the groove, which is where a tile roof actually leaks if the detailing is wrong. Air can move behind the tiles Battens or rails hold the tiles slightly off the underlay, leaving a ventilated cavity. Air entering at the eaves and leaving at the ridge carries away heat and moisture. That keeps the cells nearer their efficient operating range and stops condensation forming against the structure, which matters in hot and cold climates alike. We describe the benefit as lower operating temperature rather than quoting a fixed percentage gain, because the real number depends on cavity depth, pitch and weather. The Tile Itself: Glass–Glass Lamination Every layer below is only as good as the tile sitting on top of it. That tile has to survive hail, falling branches, snow, decades of ultraviolet light and repeated freeze–thaw cycles while protecting live electrical parts, so ours are laminated glass–glass units rather than a single sheet: two layers of toughened glass bonded over the cells, with nothing in the build that can rot, rust or chalk the way a polymer backsheet does. For a roof, two consequences matter more than the cell technology. The laminate is stiff enough to span between battens and to be walked on during installation, and the interlayer holds the covering in place if the glass is broken. The build itself, the ratings it earns and the warranty attached to it are set out in our article on double-glass PV tile structure and service life. The Structural Requirements a PV Tile Has to Meet As a building component, a PV tile is judged on more than watts. These are the properties that matter, and the reasoning behind them. Wind and snow load Roof covering standards and PV standards both test mechanical loading. Our tiles are rated for a frontal, downward load of 5400 Pa — the direction snow and foot traffic push — in static load testing. The fixing system of battens, clips or rails and their fasteners is designed for the specific building's wind region, so the tile and the fixing are one system rather than two separate purchases. Fire performance Tiles are rated for fire performance to the applicable roof and PV standards, and ours meet Class A. Glass and a cementitious or mineral deck do not sustain flame, and the ventilated cavity is detailed so it cannot act as an open chimney for embers. In bushfire and wildland-urban settings that detail is often as important as the electrical rating. Temperature cycling A dark roof surface runs far hotter than the surrounding air, and well below freezing in winter. Our tiles are rated for an operating range of −40 °C to +85 °C and go through thermal-cycling and humidity-freeze tests, which repeatedly expand and contract the glass, the encapsulant and the frame to expose weak bonds before the roof reaches a building. Electrical safety and earthing A frameless glass–glass tile puts less aluminium on the roof, but it does not remove the need for earthing. The array, the mounting metalwork and the inverter enclosures still require protective earthing and equipotential bonding, with surge protection and, where the code calls for it, rapid shutdown of the DC side. These are safety and fire-service requirements, and a competent integrated design includes them from the start rather than treating them as optional extras. Underneath all of this is a longer trend. Measured at module level, commercial silicon products have climbed from the low teens to roughly 20–22 percent efficiency, with research cells well above that; independent trackers such as Fraunhofer ISE, the U.S. Department of Energy and the IEA's PVPS programme follow the figures. For a finished roof, though, the whole-unit number is the one that pays, because frames and overlaps use area that generates nothing. Real Specifications for an Integrated Flat PV Tile To make the design discussion concrete, here are the published parameters for our framed glass–glass flat tile, the LDM series. Parameter Specification Models LDM109 / LDM112 / LDM115 Maximum power (STC) 109 / 112 / 115 W Cell 210 mm monocrystalline silicon Product size 1817 × 420 × 29 mm Glass module size 1732 × 418.5 × 5 mm Weight 9.6 kg per tile Structure Glass–glass laminate, black aluminium frame Whole-tile efficiency Approx. 15 percent on installed footprint Front static load 5400 Pa Operating temperature −40 °C to +85 °C Maximum system voltage 1000 V DC Connector and junction box IP67, two bypass diodes Cables 700 mm positive and negative Power temperature coefficient −0.34 percent per °C A note on that efficiency figure, because it is the number most often misread. The cells inside the tile are considerably more efficient than 15 percent, but the rated whole-tile output divided by the full installed footprint — frame and overlaps included — is what the roof actually delivers per square metre. Keep the two figures apart when you compare products, and be careful with ingress ratings as well: IP67 describes the connector and junction box, while the roof's waterproofing comes from overlapping tiles and the underlay, which is a different mechanism entirely. How It Connects: Inverters, Strings and Storage The tiles generate direct current, which has to be converted to grid-compatible alternating current. Tiles are wired in series into strings, and the combined string voltage has to sit inside the inverter's window across the full temperature range, so string sizing is a calculation rather than a fixed number of tiles per row. On larger or partly shaded roofs, module-level electronics earn their cost: microinverters convert at each tile, or optimizers condition each tile ahead of a string inverter. Both limit the effect of shading on a single tile and give tile-level monitoring. You can see the architectures we support in our solar inverter options. Adding a battery lets the roof store midday generation for the evening, run essential loads through an outage and lift self-consumption. Because a battery sees DC in and out, matching its voltage to the inverter and charger is part of the design rather than an accessory decision. Our article on all-in-one off-grid backup systems shows how those parts are packaged, and the full solar tile range covers the flat and curved profiles. Frequently Asked Questions What exactly makes a PV tile next generation? The change is structural, not just a better cell. Instead of a panel added over a finished roof, the tile is engineered as the weatherproof roof layer, with overlapping joints, a secondary underlay and a ventilated cavity. Higher-efficiency cells sit inside that structure, but the integration is the real difference. How long will an integrated PV tile roof actually last? We answer that through the warranty rather than a marketing lifespan. The tiles carry a 25-year linear power warranty plus a 10-year product warranty covering materials and workmanship; inverters, batteries and other non-tile components carry 3 years. Glass and mineral roof components are durable materials, but we do not claim a 30-year service life that no warranty backs. What roof pitch and detailing does an integrated roof need? Pitch and detailing decide more outcomes than the datasheet does. Water has to leave the surface faster than wind can drive it back in, so the minimum pitch comes from the local code and from the profile you choose — a flat tile needs more slope than a curved triple-arch profile. The details that keep a roof dry are at the eaves, the ridge, the verges, the valleys and every penetration, and each needs its matching accessory tile rather than a cut and a bead of sealant. On low-pitch or complex roofs, ask for a project detail drawing before the order, not after. Can PV tiles really keep the roof waterproof? Yes, through roofing design rather than an electrical rating. The tiles overlap and interlock so water drains over the joints, EPDM seals compress where sealing is needed, and the underlay is a second line of defence. Water-spray and weather testing check the build, and correct detailing at eaves, ridges, verges and penetrations is part of the installation. Are integrated PV tiles worth the higher cost compared with panels? It depends on the project. Add-on panels stay cheaper per watt and make sense when an existing roof is sound and only needs generation. PV tiles cost more per watt but replace the covering itself, so on a new build or a re-roof the honest comparison is against the cost of a new roof plus an array. They make most sense where appearance, planning conditions or a heritage profile matter, which is where our curved triple-arch tiles are aimed. Designing With GreenMore GreenMore is a photovoltaic tile manufacturer. Our solar tiles, photovoltaic bricks and photovoltaic curtain walls are produced in-house, with inverters and batteries supplied as the parts that complete the system. We work with distributors, installers and project owners from the first design stage, matching tile profile, roof structure, electrical architecture and storage to the building and the local code. If you are planning a project, send us the building type, roof area, location and target generation, and we will come back with a proposal that can actually be built rather than a generic datasheet. Reach us through our contact page or at export@gmsolarkit.com. L Luke Product Manager, BIPV Solar Tiles Luke manages GreenMore's photovoltaic building-material range, from the curved triple-arch tile to flat tiles and PV curtain walls. He has worked in the solar industry since 2017 and writes about how a roof is actually built and detailed rather than repeating datasheet figures. Updated on November 14, 2026
